4 Wire Spiral High Pressure Hydraulic Hose SAE 100 R12
Tianjin Hengyong Hydraulic Technology Co., Ltd.- Material：Synthetic Rubber
- Capability：Rubber Oil Hose
- Color：Black
- Inner Tube：Oil Resistant Synthetic Rubber
- Reinforcement：Four High Tensile Steel Wire Spiral Layers
- Cover：Abrasion and Weather Resistant Synthetic Rubber
Base Info
- Model NO.：sae 100 r12
- Max.Working Pressure：27.5 MPa
- Temperature Range：-40 Degree to +125 Degree
- Size：3,8"-2"
- Length：100m,Roll, 50m,Roll, 20m,Roll
- MOQ：500m
- Sample：Available
- Delivery Time：25 Days for Normal Order
- Transport Package：PE Film or Weaving Belt by Rolls
- Specification：3,8"-2"
- Trademark：JJR
- Origin：China
- HS Code：4009210000
- Production Capacity：50000meter,Month
Description
B.PMin B.R Weight inch mm mm mm Mpa Psi Mpa Psi mm kg/m 3/8" 9.5 17.2 20.3 27.5 4000 110.3 16000 130 0.7 1/2" 12.7 20.7 23.8 27.5 4000 110.3 16000 180 0.84 5/8" 15.9 24.6 27.4 27.5 4000 110.3 16000 200 1.1 3/4" 19 27.7 30.7 27.5 4000 110.3 16000 240 1.33 1" 25.4 34.9 38 27.5 4000 110.3 16000 300 1.85 1-1/4" 31.8 43.9 47 20.7 3000 82.7 12000 420 2.65 1-1/2" 38.1 50.4 53.5 17.2 2500 68.9 10000 500 3.2 2" 50.8 63.7 66.7 17.2 2500 68.9 10000 630 4.5

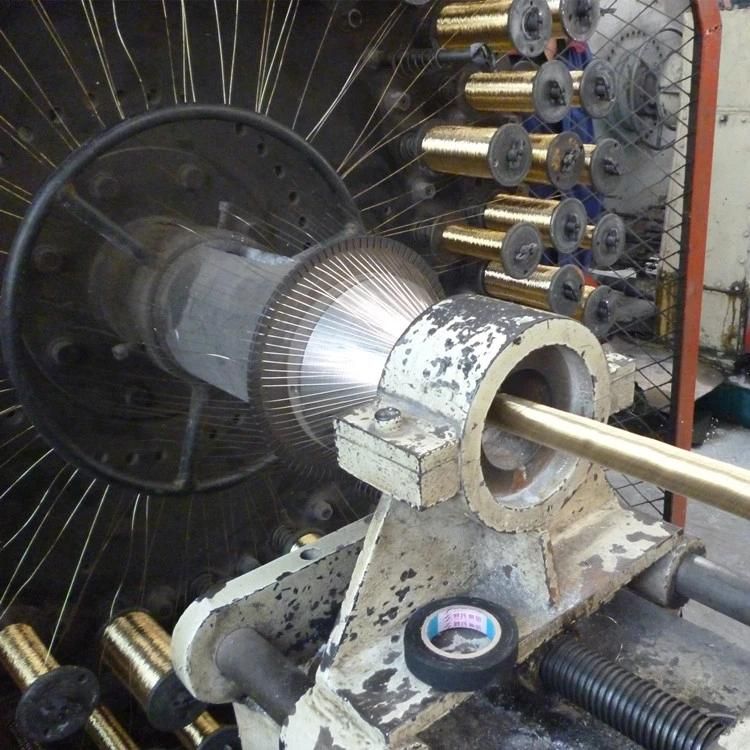

Spirial machine:

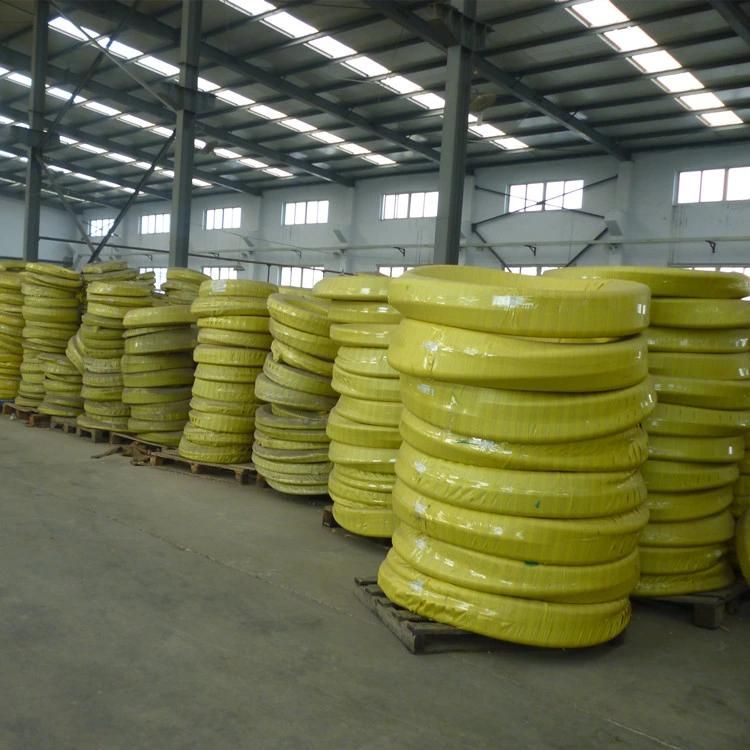

Our stock:

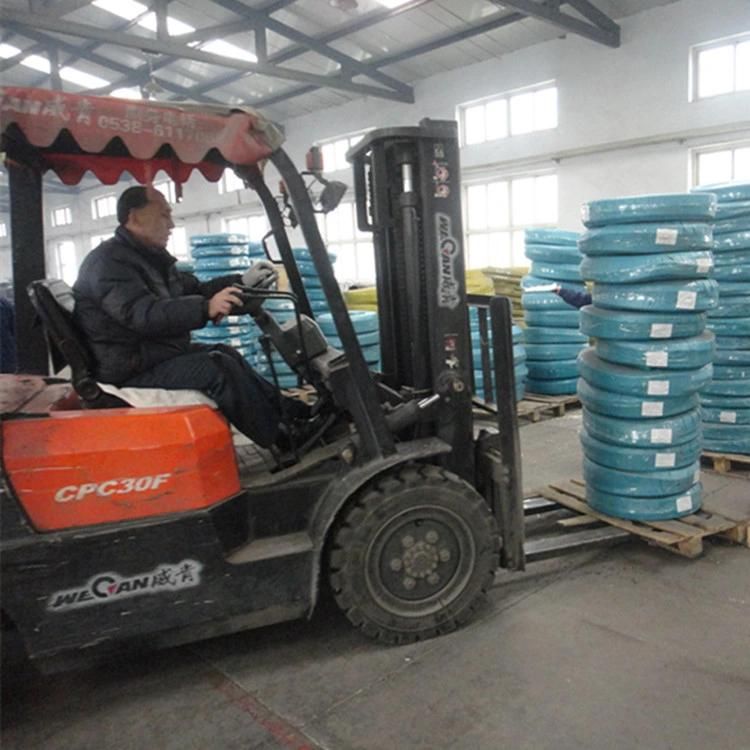

Container loading:
We are professional manufacturer of hydraulic hose and fittings.Main item include SAE 100 R1,R2,R3,R4,R5,R6,R7,R8,R12,R13,R14,4SP,4SH,flexible ss hose and a large variety of hydraulic fittings,if you are interested in our products,please feel free to contact with us.
Spirial machine:
Our stock:
Container loading:
We are professional manufacturer of hydraulic hose and fittings.Main item include SAE 100 R1,R2,R3,R4,R5,R6,R7,R8,R12,R13,R14,4SP,4SH,flexible ss hose and a large variety of hydraulic fittings,if you are interested in our products,please feel free to contact with us.
