• Model NO.：Chemshun ceramics
• Size：300*300mm 500*500mm
• Item：Rubber Ceramic Composite
• Alumina Content：92% 95%
• Polular Application：Cement, Steel, Mining, Power Generation, Port
• Firing Temperature：1680
• OEM：Design According Customer′s Drawings
• Structure：Ceramics+Rubber+Steel
• Vulcanized Ceramics Shape：Ceramic Plate, Hexagonal Ceramics , Cylinder etc

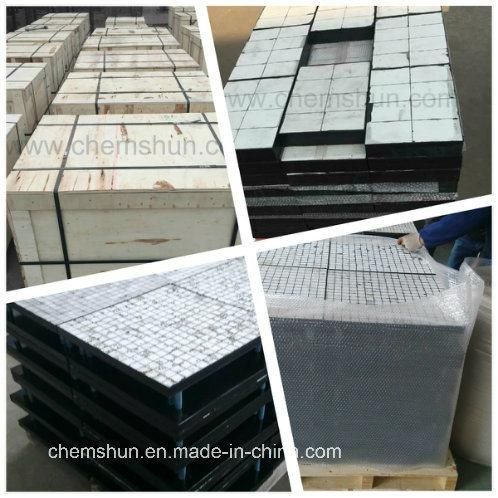

• Transport Package：Cartons Fixed on Pallet or Wooden Case
• Specification：100*100MM, 200*200Mm, 300*300MM, 500*500 MM
• Trademark：CHEMSHUN
• Origin：Pingxiang, Jiangxi, China
• HS Code：69091200
• Production Capacity：350ton,Month

Basic Info.

Model NO. Chemshun ceramics Size 300*300mm 500*500mm Item Rubber Ceramic Composite Alumina Content 92% 95% Polular Application Cement, Steel, Mining, Power Generation, Port Firing Temperature 1680 OEM Design According Customer′s Drawings Structure Ceramics+Rubber+Steel Vulcanized Ceramics Shape Ceramic Plate, Hexagonal Ceramics , Cylinder etc Transport Package Cartons Fixed on Pallet or Wooden Case Specification 100*100MM, 200*200Mm, 300*300MM, 500*500 MM Trademark CHEMSHUN Origin Pingxiang, Jiangxi, China HS Code 69091200 Production Capacity 350ton/Month

Product Description

Aluminum Oxide Ceramic Rubber Wear Liner for Wear Improvement

1: Chemshun wear ceramic liner advantages:

• High hardness
• Superior abrasion and impact resistance
• Corrosion and chemical resistance
• Light weight
• Easy installation by epoxy resin or bolt
• Improve your working environment-noise, vibration and safety

2: Chemshun Rubber ceramic linings short description :
  Aluminum Oxide Ceramic Rubber Wear Liner is suitable for application in areas of severe impact and areas of high abrasion.Chemshun rubber ceramic composite liner can be supplied to incorporate a variety of

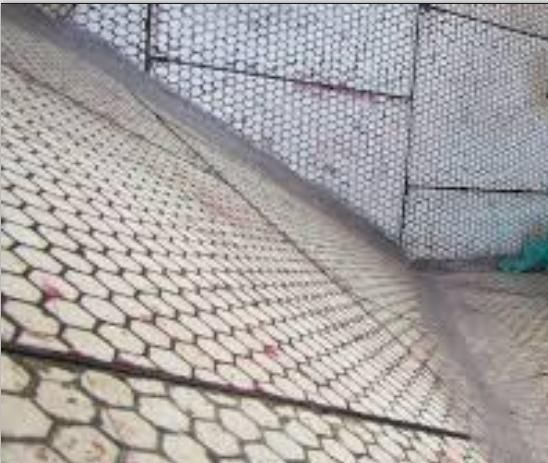

ceramic shapes , including hexagonal tiles , cylinders and cubes, ceramic plain tiles , all of which have a high alumina content that withstands servere impact and high abrasion .

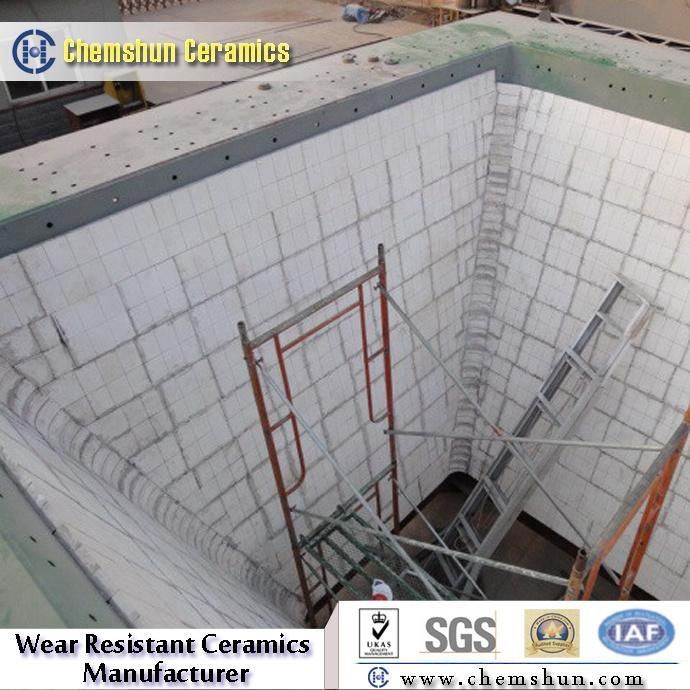

Chemshun wear ceramic liner is ideal wear protection materials for chute , bunker mining
equipment,because it is easy to be installed in equipment substrate by epoxy glue water
or welded by bolts. Chemshun ceramic rubber liners structure including : ceramic vulcanized
 in rubber , ceramic vulcanized in rubber then backed with steel panel .


3: Chemshun ceramic rubber liner popular size :


Chemshun wear ceramic liner size : (Length* width * thickness)

300*300*63 mm

500*500*30 mm

300*300*25 mm

Note : customized size available according to customer's requirement

4: Chemshun ceramic rubber panel application :

1. mining industry
2. Cement industry
3. Coal handling industry
4. Steel industry
5. Port industry
6. Power plant

5: Chemshun ceramic rubber plate property :


Property	Value
Normal Size	500*500mm , 300*300mm,250*250mm
Ceramic Thickness	15~50mm
Rubber Thickness	3mm~10mm
Type of Rubber	Vulcanized natural rubber compound with carbon black filler  (approx. 40%)
Rubber Shore A hardness	45 (+/-5)
Rubber Tensile Strength	2710 psi
Rubber Elongation	600%
Rubber-ceramic bond	Surface chemical pre-treatment of ceramic prior to hot pressure vulcanized
Ceramic tile (Thk)	2mm~50mm (mosaic tiles, plain tile etc.)
Vulcanized ceramics	square mosaic tile, rectange tile , plain tile , hex tile , cylinder
Alumina Content	Al.2O3 92% 95%
