Fabric Flexible Rubber High-Pressure Hydraulic Hose for Industrial with ISO9001 RoHS En ISO3821 FDA Reach Certification
Hangzhou Haikuo Rubber and Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Color
- Size：3,16"-2"
- W.P.：6000psi
- B.P.：24000psi
Base Info
- Model NO.：SAE 100 R21AT Hydraulic Hose
- Connector：NPT, Bsp Carbon Steel Fitting
- Package：Woven Bag Wrapped
- Unit Length：100m,Roll Max
- Reinforcement：1or 2 or 4 Layers Steel Wire
- Outer Cover：Neoprene Rubber
- Advantage：Fire-Resistance, High Pressure
- Application：Oil, Water and Other Liquid Deliver
- Transport Package：Woven Bag Wrapped
- Specification：High quality
- Trademark：HIGHQUA or OEM
- Origin：Zhejiang, China
- HS Code：40092100
- Production Capacity：100000meter Per Month
Description
Min. Burst PressureWeight in DIN in mm psi mpa in mm psi mpa kg/m 2SN-03 3/16 4.8 0.48 13.4 6000 41.4 3.5 89 24000 165.5 0.31 2SN-04 1/4 6.4 0.59 15.1 5800 40 4 100 23200 160 0.33 2SN-05 5/16 7.9 0.65 16.6 5000 35 4.5 115 20300 140 0.39 2SN-06 3/8 9.5 0.75 19.1 4800 33.1 5 125 19200 132.4 0.50 2SN-08 1/2 12.7 0.88 22.2 4000 27.6 7 180 16000 110.3 0.59 2SN-10 5/8 15.9 1 25.4 3630 25 8 200 14520 100.1 0.71 2SN-12 3/4 19 1.16 29.4 3120 21.5 9.5 240 12480 86 0.86 2SN-16 1 25.4 1.5 38.1 2400 16.5 12 300 9600 66.2 1.28 2SN-20 1 1/4 31.8 1.88 48.3 1820 12.5 16.5 420 7280 50.2 2.02 2SN-24 1 1/2 38.1 2.13 54.6 1310 9 20 500 5240 36.1 2.20 2SN-32 2 50.8 2.63 67.3 1160 8 25 630 4640 32 2.85

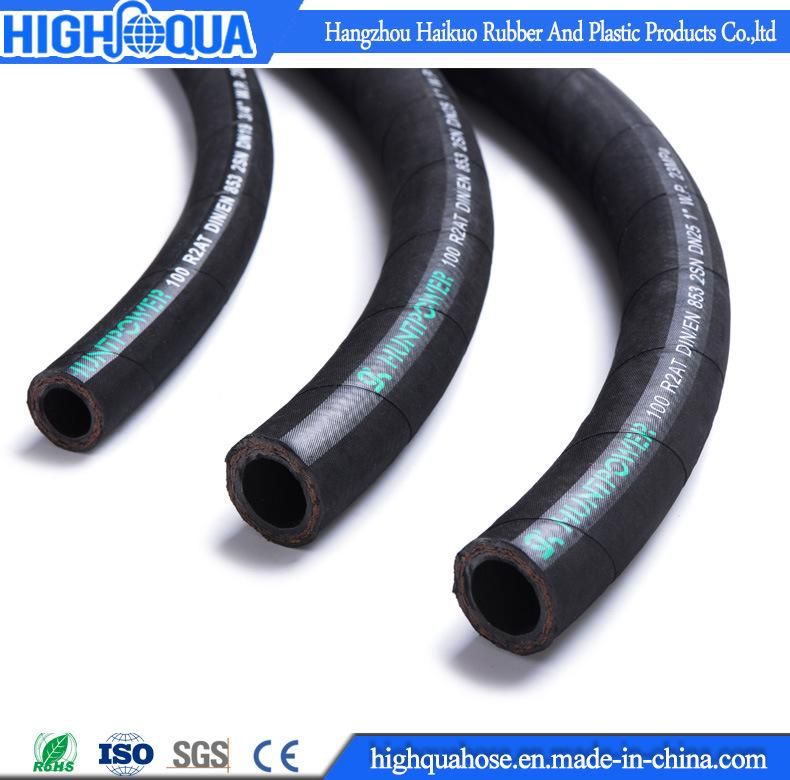

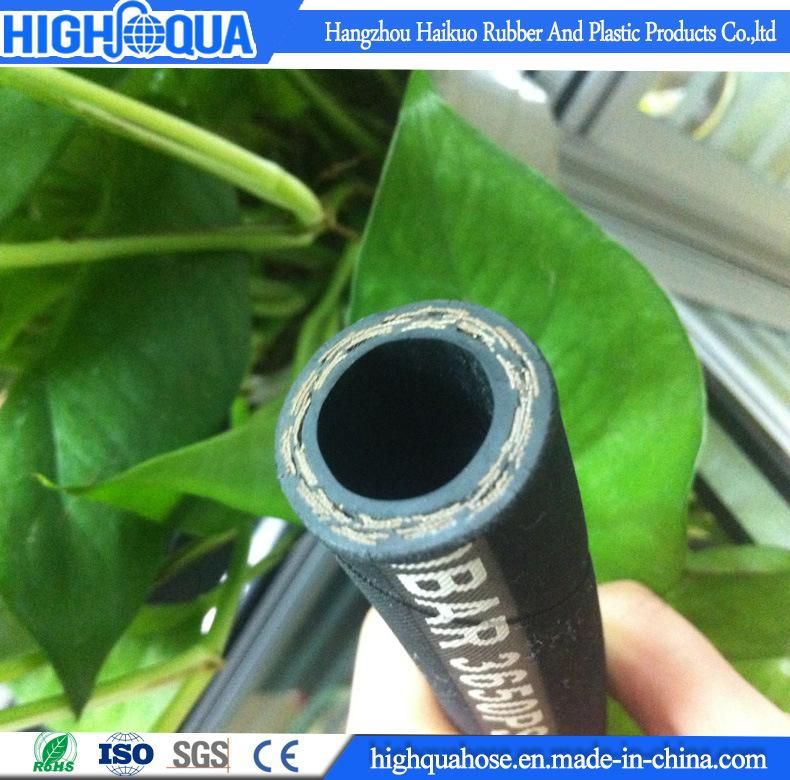

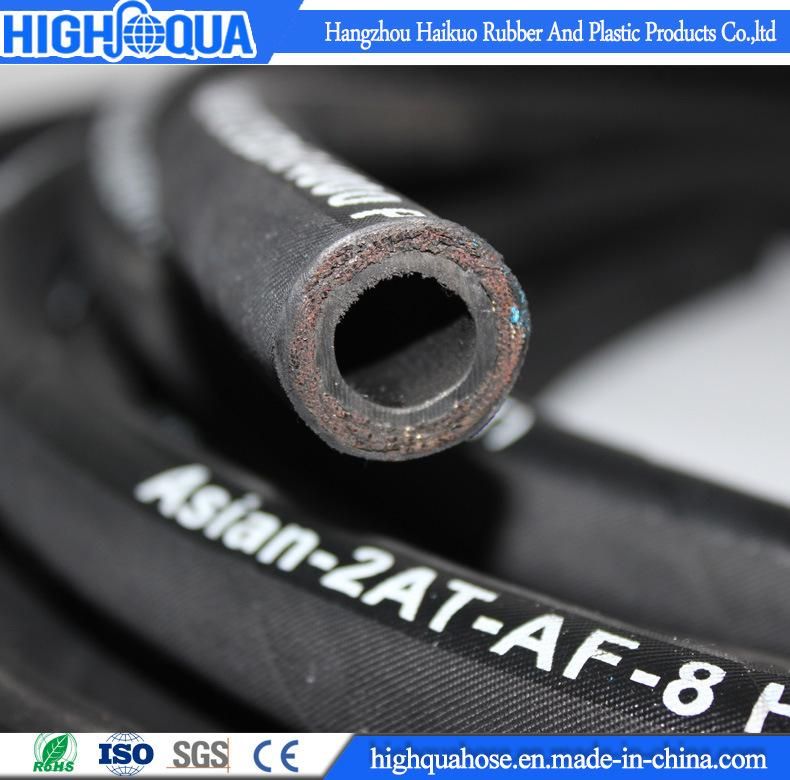

Product Show of hydraulic hose :
>>Free samples are available!
If you have any other questions, please do not hesitate to contact us!
