• Model NO.：oil hose 6mm to 102mm
• Tube：Black Nitril Rubber Tube, Oil and Fuel Resistant
• Reinforcement：Textile Braided High Tensile Synthetic Yarn
• Cover：Black Neoprene Rubber, Oil, Ozone, Weather
• Colour：Balck, Yellow, Orange, Blue, Red, Green or Other
• Working Pressure：20bar,300psi
• Samples：Free Supply
• Transport Package：Plastic Film or Plastic Woven Bag
• Specification：En 559, GOST 9356-75, 6mm to 102mm
• Trademark：Hyrotech or Hyroflex
• Origin：China
• HS Code：4009310000
• Production Capacity：20000000meters,Year

Basic Info.

Model NO. oil hose 6mm to 102mm Tube Black Nitril Rubber Tube, Oil and Fuel Resistant Reinforcement Textile Braided High Tensile Synthetic Yarn Cover Black Neoprene Rubber, Oil, Ozone, Weather Colour Balck, Yellow, Orange, Blue, Red, Green or Other Working Pressure 20bar/300psi Samples Free Supply Transport Package Plastic Film or Plastic Woven Bag Specification En 559, GOST 9356-75, 6mm to 102mm Trademark Hyrotech or Hyroflex Origin China HS Code 4009310000 Production Capacity 20000000meters/Year

Product Description

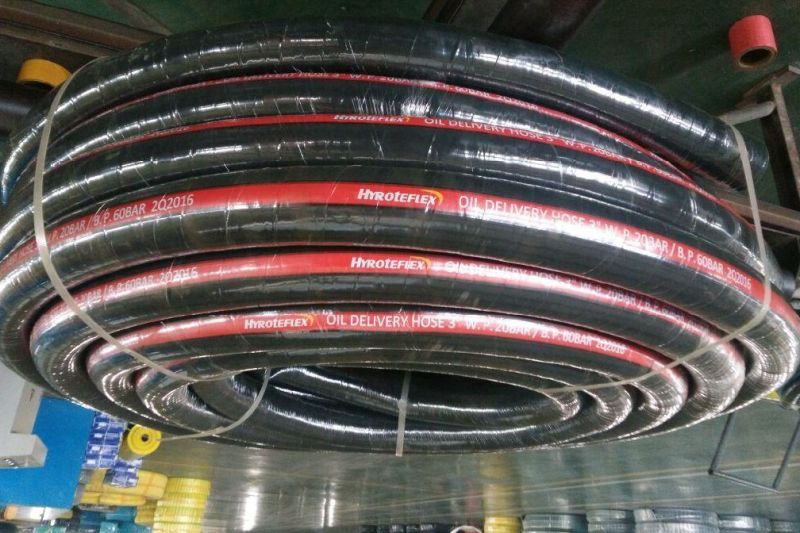

Wrapped oil hose

Tube: Black NITRIL rubber tube, oil and fuel resistant, smooth
Reinforcement: Textile braided high tensile synthetic yarn
Cover: Black NEOPRENE rubber, oil, ozone, weather, abrasion resistant
Applications: In fuel systems like gasoline, diesel fuel, also suitable for loading and unloading tank cars, automobiles, oil refine and oil related industrials, etc.
Temperature: -40° C + 100° C
Brading: As request
Length: 40, 50M / as request
Packing: Trans. P. V. C. Film

In the meantime, we can also produce the other industrial hose and hydraulic hose as below:

Air hose, water hose, oil hose, steam hose, gas hose, acetylene, twin welding hose, sandblast hose, suction/discharge hose, automotive hose.

R1, R2, R3, R4, R5, R6, R7, R8, R9, R12, R13, R14(Teflon hose), R15, R16, R17, 4SP, 4SH, 1SN, 2SN, 1SC, 2SC, 1TE, 2TE.

Our hoses are exported to more than 40 countries, including to USA, UK, Canada, Australia, Russia,
Ukraine, Thailand, Brazil, Chile, Peru, India, UAE, Iran etc...So we can provide the best service for our customers. (quality, prices, delivery time etc).

We can provide the free samples for testing or reference for quality grade.

Looking forward to receive a real inquiry from you.

ID (mm)	ID (inch)	Wall (mm)	WP (bar)	BP (bar)	Radius (mm)	Weight (kg/m)
6	1/4	3.5	16/20	50/60	35	0.17
8	5/16	3.5	16/20	50/60	50	0.25
10	3/8	3.5	16/20	50/60	60	0.29
13	1/2	4.0	16	48	60	0.37
13	1/2	5.0	20	60	70	0.42
16	5/8	4.0	16	48	80	0.45
16	5/8	4.5	20	60	90	0.48
19	3/4	5.0	16	48	110	0.58
19	3/4	5.5	20	60	125	0.60
25	1	5.0	20	48	130	0.72
25	1	5.5	16	60	150	0.83
32	1-1/4	6.0	10	30	230	0.94
38	1/1-2	6.0	10	30	270	1.08
50	2	7.0	10	30	400	1.80
