Hydraulic Hose Yarn SAE 100 R3

Tianjin Hengyong Hydraulic Technology Co., Ltd.
  • Material：Synthetic Rubber
  • Capability：Rubber Oil Hose
  • Color：Black
  • Inner Tube：Oil Resistant Synthetic Rubber
  • Reinforcement：Two High Tensile Fiber Braid
  • Cover：Abrasion and Weather Resistant Synthetic Rubber

Base Info

  • Model NO.：SAE 100 R3
  • Max.Working Pressure：10.3 MPa
  • Temperature Range：-40 Degree to +100 Degree
  • Size：3,16"-1-1,4"
  • Length：100m,Roll, 50m,Roll, 20m,Roll
  • MOQ：500m
  • Sample：Available
  • Delivery Time：25 Days for Normal Order
  • Transport Package：PE Film or Weaving Belt by Rolls
  • Specification：3,16"-1-1,4"
  • Trademark：JJR
  • Origin：China
  • HS Code：4009310000
  • Production Capacity：50000meter,Month

Description

 Hose IDHose ODW.PB.PMin B.RWeightinchmmmmMpaPsiMpaPsimmkg/m3/16"4.812.710.3150041.46000750.161/4"6.414.38.6125034.55000750.195/16"7.917.58.3120033.148001000.263/8"9.5197.811253145001000.281/2"12.723.86.9100027.640001250.45/8"15.927687524.135001400.553/4"1931.85.275020.730001500.691"25.4383.956515.522502050.821-1/4"31.844.42.637510.315002501

Hydraulic Hose Yarn SAE 100 R3
Hydraulic Hose Yarn SAE 100 R3

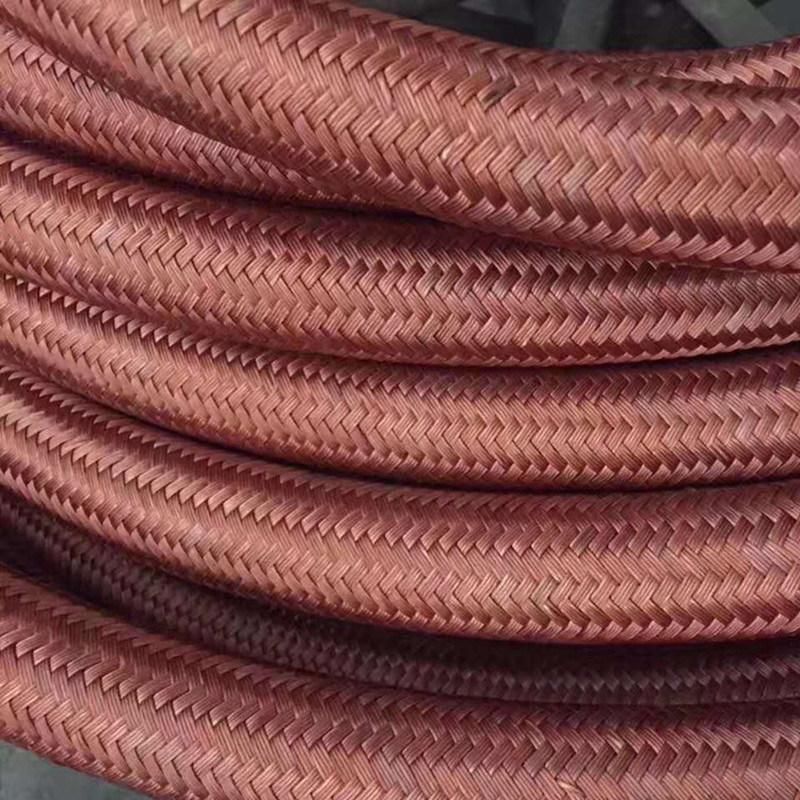

Braiding:
Hydraulic Hose Yarn SAE 100 R3

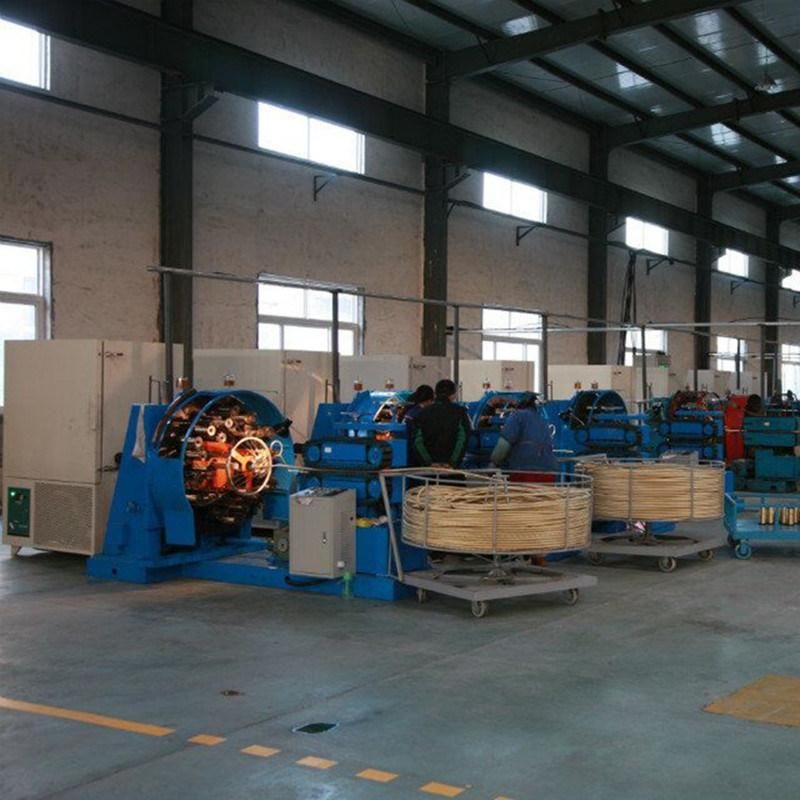

Our plant:
Hydraulic Hose Yarn SAE 100 R3

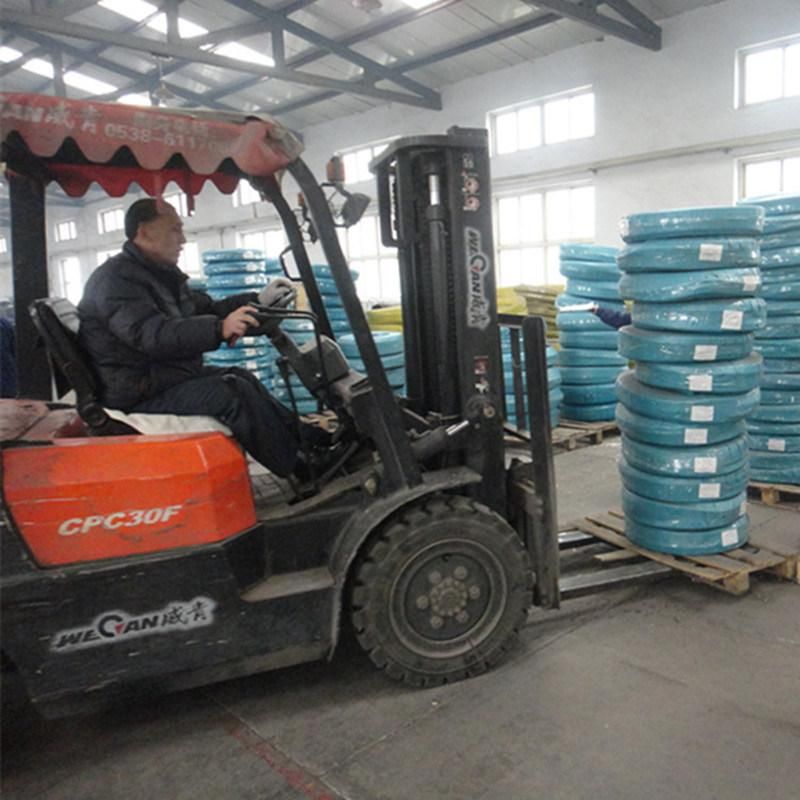

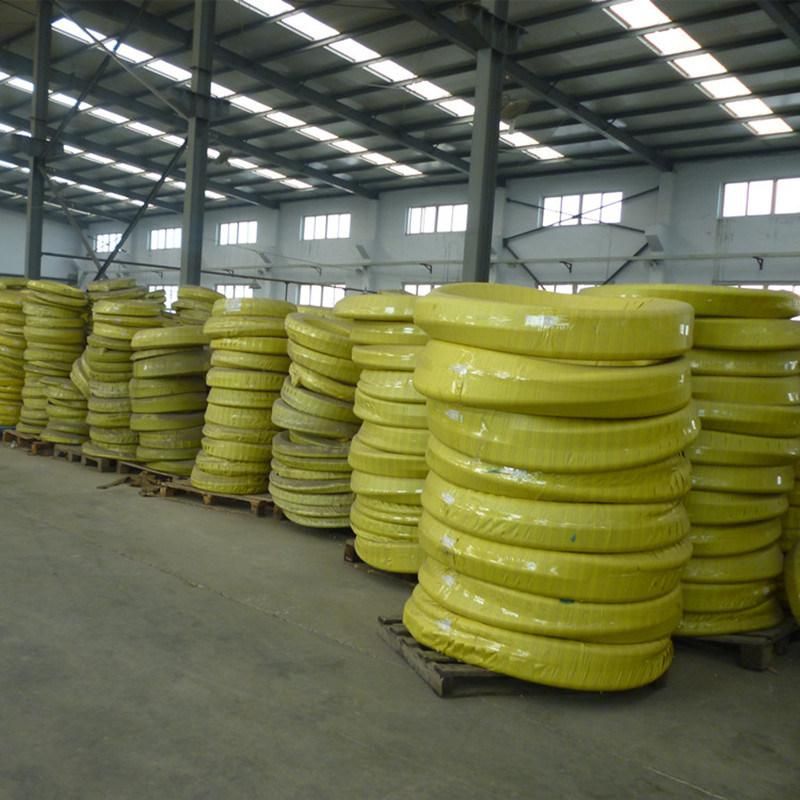

Our stock:
Hydraulic Hose Yarn SAE 100 R3
Hydraulic Hose Yarn SAE 100 R3

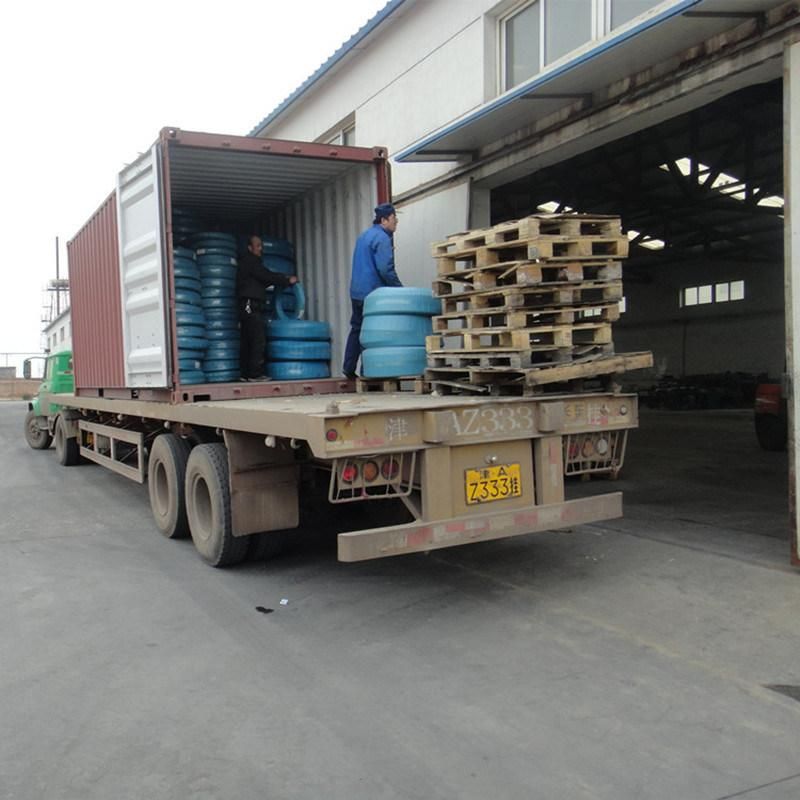

Container loading:
Hydraulic Hose Yarn SAE 100 R3


We are professional manufacturer of hydraulic hose and fittings.Main item include SAE 100 R1,R2,R3,R4,R5,R6,R7,R8,R12,R13,R14,4SP,4SH,flexible ss hose and a large variety of hydraulic fittings,if you are interested in our products,please feel free to contact with us.
