SAE 100 R2at Hydraulic Hoses / API Q1 Certificated / Crimping Machinery Expandable Hose

Hengyu Group Hydraulic Fluid Technology Hebei Co., Ltd.
  • Material：Synthetic Rubber
  • Capability：Rubber Oil Hose
  • Color：Black
  • Temperature Range：-40°c , +100°c
  • Inner Tube：Oil Resistant Synthetic Rubber
  • Reinforcement：Two Braids of High Tensile Steel Wire

Base Info

  • Model NO.：rubber hose
  • Cover：Environment Resistant Synthetic Rubber
  • Standards：En853 2sn-SAE 100r2at-ISO 1436-1 2sn
  • Application：Medium-High Pressure Lines
  • Transport Package：Packed with PVC Films
  • Specification：Synthetic rubber
  • Trademark：HENGYU or OEM
  • Origin：Hebei, China
  • HS Code：4009210000
  • Production Capacity：30, 000 Meters Per Day

Description

I.DR.O.D.C.TO.DMIN B.P.MIN B.R.WEIGHTmminchMinMaxMinMaxMinMaxMaxbarpsibarpsimmkg/mmmmmmmmmmmmmmm53/16"4.65.410.611.60.81.514.14156020165024076900.2761/4"6.27.012.113.30.81.515.740058001600232041000.3485/16"7.78.513.714.90.81.517.335050801400203041150.39103/8"9.310.116.117.30.81.519.733048001320191441300.49121/2"12.313.519.020.60.81.523.027540001100159561800.59165/8"15.516.722.223.80.81.526.225036301000145002000.71193/4"18.619.826.227.80.81.530.12153120850124722400.89251"25.026.434.135.71.02.038.9165240065095723001.37321.1/4"31.433.043.345.71.02.049.5125182050072524202.27381.1/2"37.739.349.652.01.32.555.990131036052205002.44512"50.452.062.364.71.32.568.680116032046406303.00642 1/2"63.065.274.677.81.32.583.070101528040607603.47 Packaging & Shipping

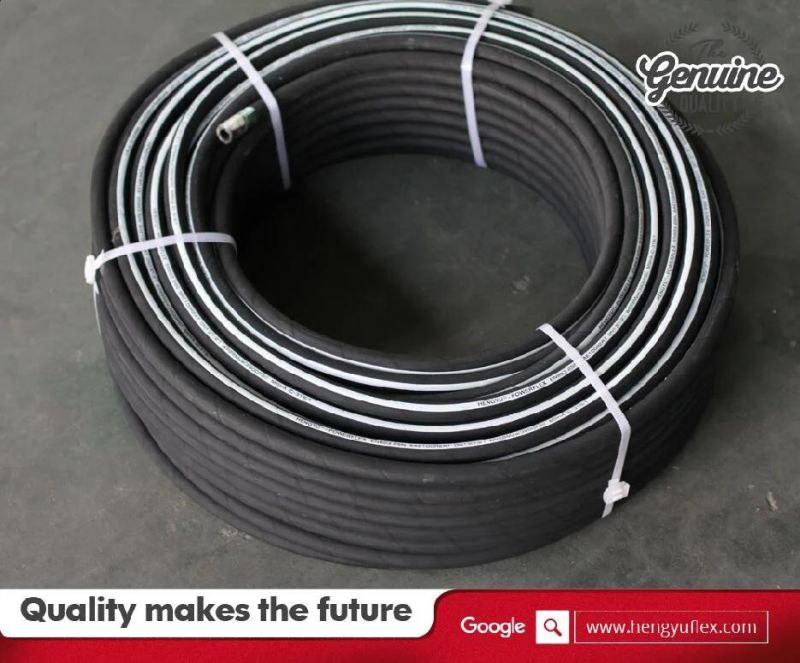

The general package of 2SN hydraulic hose is plastic or woven bag with pallet under the hose, which can be seen below. We, however, can also provide special package according to customer's requests.
