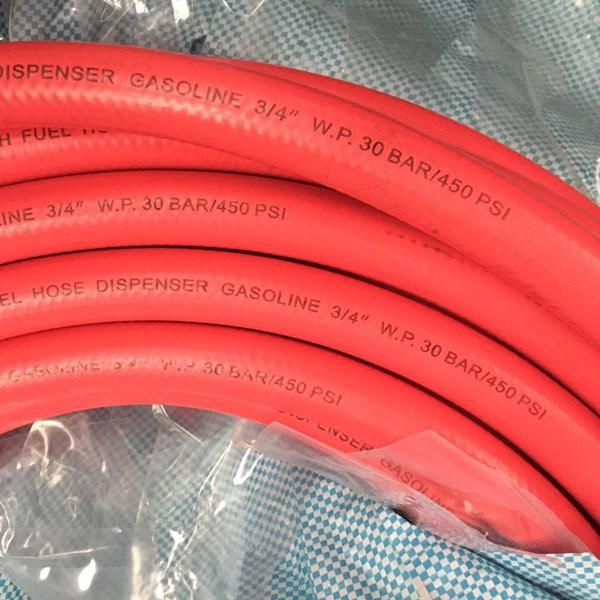

Red High Quality Curb Pump Hose, Fuel Dispenser, Fuel Dispenser Pump Hose for Sale
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Color
- Type：Dispensing Flammable Liquids Hose
- Brand：Passion
- Surface：Smooth
Base Info
- Model NO.：Fuel Dispenser Pump Hose
- Inner Tube：NBR
- Reinforcement：One Braid of Steel Wire
- Cover：NBR
- Temperature：-40c~70c
- Size：5,8", 3,4", 1"
- Length：20m, 50m
- Certification：Ce TUV ISO9001

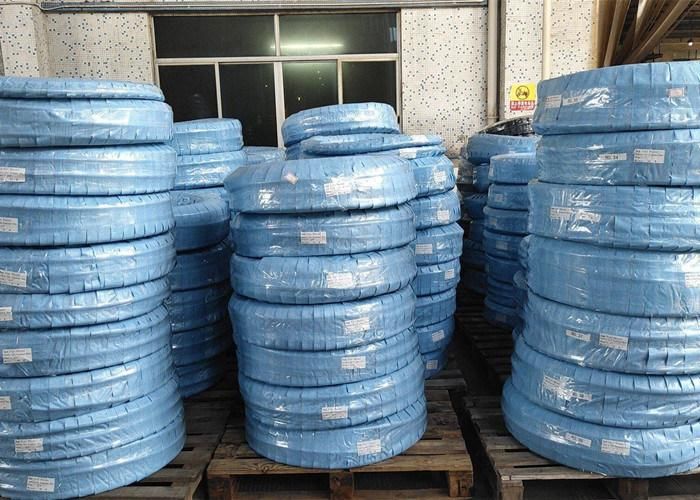

- Transport Package：Well Packed by Poly Stripes
- Specification：CE SGS ISO9001
- Trademark：PASSION
- Origin：Zhejiang China
- HS Code：40092100
- Production Capacity：20000 Meters , Month
Description
Technical information:
Rubber Content of "Paishun's Hose" - The NBR Content of Hose Inner Tube is 42% and 40% in Hose Outer Tube.
The High NBR Material Content makes the Hose has excellent "permeability", so the Hose is able to not " bulge" even being immersed in High grade gasoline after 72 hours.

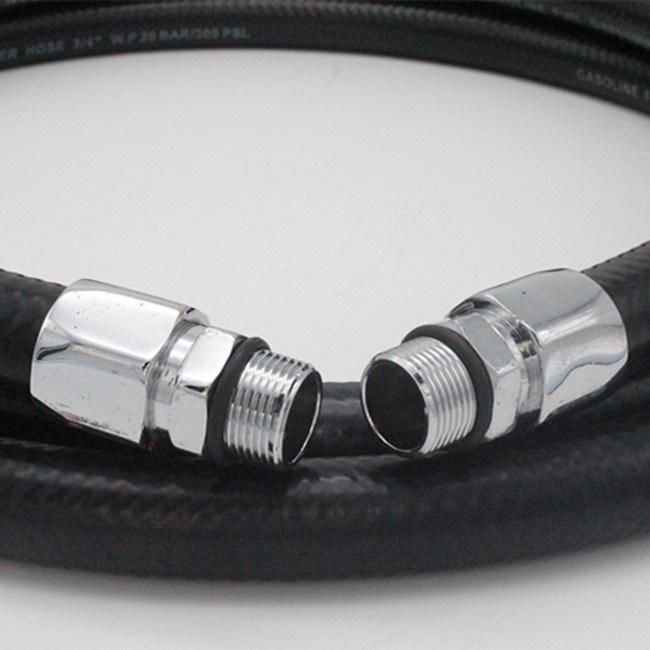

The Electrical Conductivity of Hose Assembly - When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, to make sure the Hose has "stable conducting electrostatic property", we test the " Hose Electrical Conductivity" with Ammeter.
Pressure Test - Every batch Hose will be tested under the Test Pressure (10times higher than the Hose's W.P.) and keeps at least 3 minutes, this is to avoid any invisible holes appear on Hose.
The Wire we use - The tensile strength of Single Wire we use is 2750 Newton high strength wire, the wire diameter is 0.295mm.
The " TEST" we do for every batch of Hose:
1) Test the " adhesiveness" between wires and rubber. Every batch of wires will be tested.
2) Test the " break strength" of wire. The standard wire we use is 2750N, we will test the " strength " of every batch of wire.
3) Test the " Pressure" of Hose, evey roll of Hose will be tested.
4) Test the "rubber sheet break strength" and " rubber sheet elongation at break".
5) Test " rubber wear-resisting property "
6) Test " rubber aging resistance "
7) Test " ozone resistance ".
8) Test " low temperature resistance ".
9) Test " hose electrical conductivity ".
10) Test " bending properties".
11) Test " incombustibility".
Characteristic of PAISHUN® Petrol Pump Hose:
When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, so that the Hose has "stable conducting electrostatic property" , it is safe in Service Station Application.

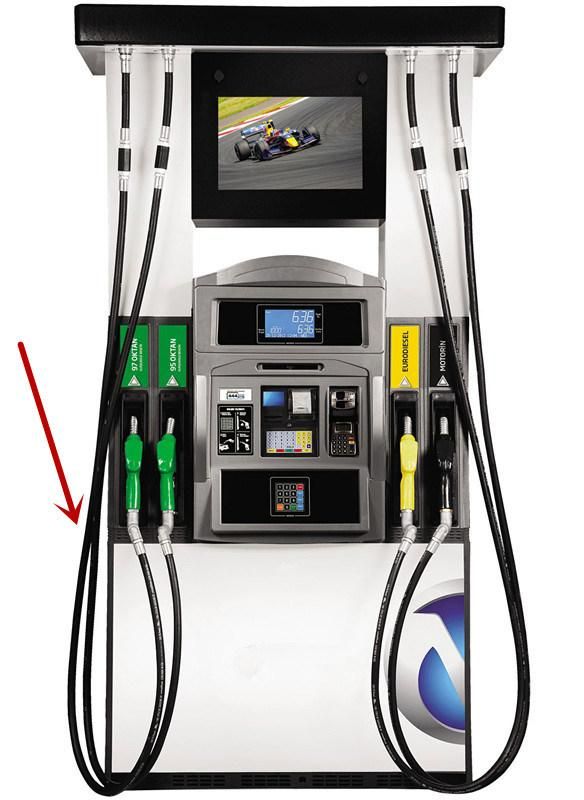

PAISHUN® Petrol Pump Hose Application:
* Can be used on gasoline, fuel, diesel and other
* Can be used in low and high flow / pressure pumps
Technical specifications:
Internal gauge 3/4 "19,1mm
External Grip 28mm
