Automotive Air Conditioning Hose Type C Type E
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：EPDM
- Capability：Conveying R12, R134A etc.
- Color：Black
- Type：Air Conditioning Hose
- Brand：Passion
- Size：5,16", 1,2", 5,8"
Base Info
- Model NO.：5,16"~7,8"
- Barrier：PA,Nylon
- Inner Tube：EPDM
- Reinforcement：Pet or Single Braid Polyester.
- Cover：EPDM Synthetic Rubber
- Temperature：-30c~125c
- Length：100m
- W.P：15bar ~35bar
- Surface：Cloth-Wrapped Surface or Smooth Surface
- Standard：Saej2064 Type C or Type E
- Transport Package：Well Packed by Woven Poly Stripes.
- Specification：5,16", 1,2", 5,8"
- Trademark：PASSION
- Origin：Zhejiang China
- HS Code：40093100
- Production Capacity：400000 Meters , Month
Description
Overview
Product Description
Reinforcement: PET or single braid polyester
Cover: EPDM synthetic rubber
Temperature: -30ºC~125ºC
Color: Black
Application: Mainly used for conveying R12, R134a etc medium in automobile air-conditioning system like bus transit system.
Standard length: 100m
Standard:SAEJ2064 type C thin or thick wall. Or type EProduct ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Weight inch mm mm bar psi bar psi m kg/m 5/16 8.2±0.4 15.2±0.5 35 500 280 4060 100 0.15 13/32 10.2±0.4 17.2±0.5 35 500 220 3139 100 0.17 7/16 11.5±0.4 18.4±0.5 35 500 230 3335 100 0.20 1/2 13.2±0.4 20.8±0.5 35 500 200 2900 100 0.23 5/8 15.5±0.4 22.8±0.5 20 290 180 2610 100 0.26 3/4 19.0±0.4 27.5±0.5 15 210 160 2320 100 0.37 7/8 22.0±0.4 33.0±0.5 15 210 120 1740 100 0.67

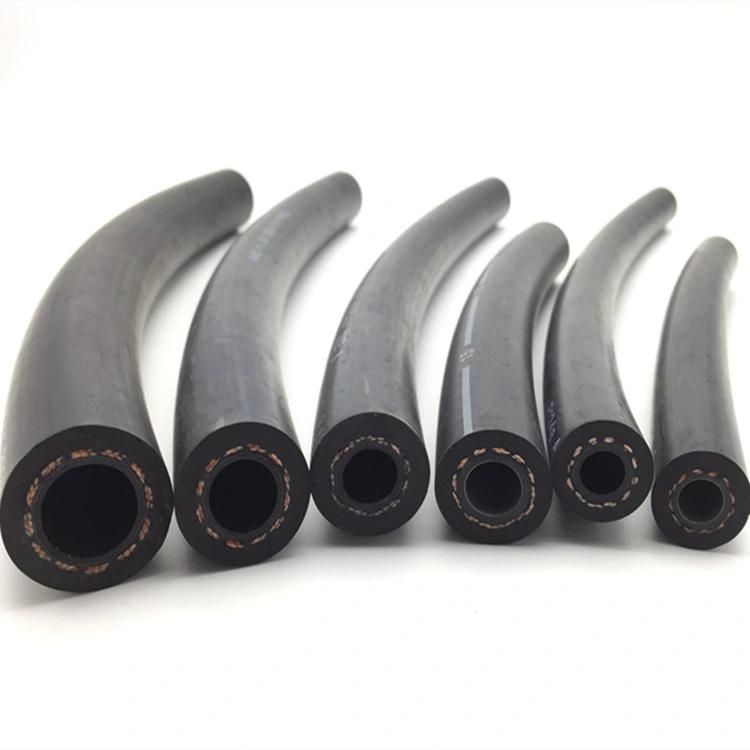

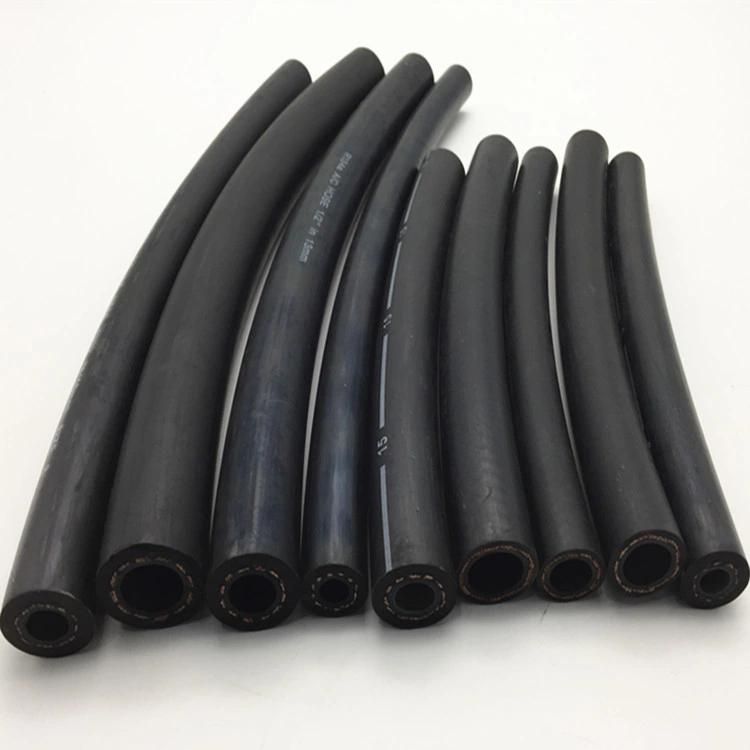

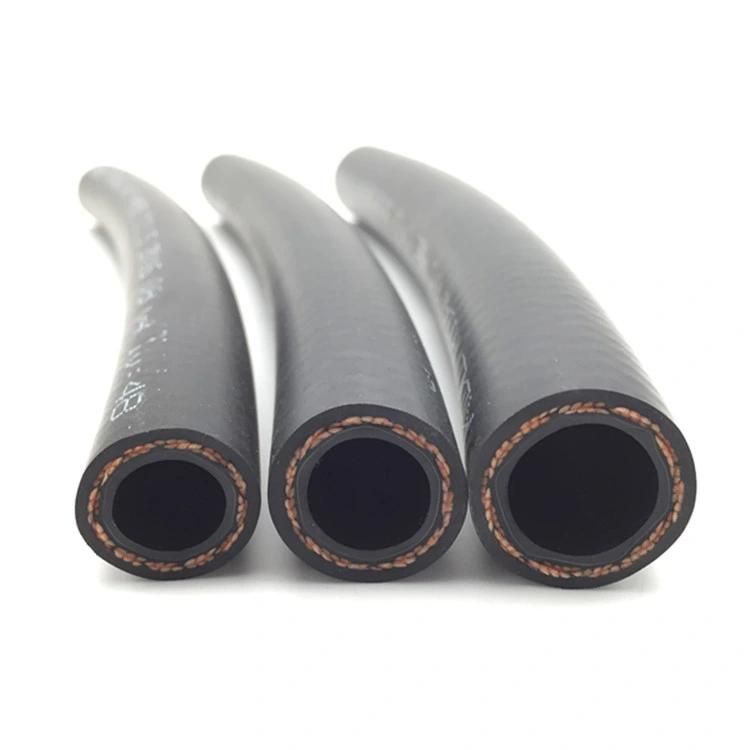

Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.

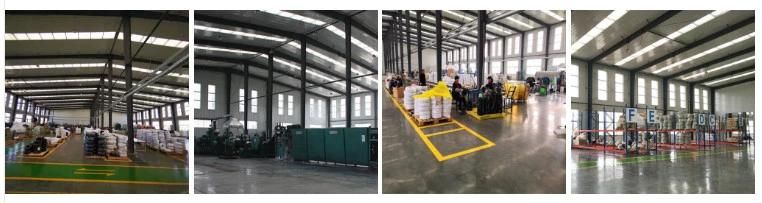

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.Certifications
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.
Exhibition:
PASSION HOSE!
PASSION FOR YOU!
PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Hydraulic Rubber Hose:wire braided reinforced hoses SAE 100 R1AT/1SN, SAE 100 R2AT/2SN, SAE100R5, SAE 100R16 textile braided reinforced hoses SAE 100R3, SAE 100R4, SAE 100R6 thermoplastic hose SAE 100R7, SAE 100R8 wire spiralled
reinforced hoses
SAE 100R9, SAE100R10, EN856 4SP, EN856 4SH, SAE 100R12, SAE 100R13, SAE 100R15
Oil resistant Hose Oxygen Acetylene Hose Acid Aikali Resistant Hose Special Pure Rubber Hose Heat Resistant Hose Wear Resistant Hose Air Hose/water hose Gas LPG Hose Twin Welding Hose Freon Charging Hose Automotive air condition hose
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company or a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
Construction: Barrier: PA
Inner tube: EPDMReinforcement: PET or single braid polyester
Cover: EPDM synthetic rubber
Temperature: -30ºC~125ºC
Color: Black
Application: Mainly used for conveying R12, R134a etc medium in automobile air-conditioning system like bus transit system.
Standard length: 100m
Standard:SAEJ2064 type C thin or thick wall. Or type EProduct Parameters
Specification:
Detailed Photos
Packaging & ShippingPacking & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Company Profie:
Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.
We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.Certifications
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.
Exhibition:
PASSION HOSE!
PASSION FOR YOU!
PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Hydraulic Rubber Hose:
reinforced hoses
SAE 100R9, SAE100R10, EN856 4SP, EN856 4SH, SAE 100R12, SAE 100R13, SAE 100R15
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company or a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
