3/16"~2" Industrial Groove Surface Rubber Air Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：SBR&Nr
- Capability：Rubber Air Hose
- Color：Color
- Type：Rubber Air Hose
- Brand：Passion
- Size：3,16"~1"
Base Info
- Model NO.：3,16"~2"
- O.D：12mm~36mm
- Reinforcement：High-Tensile Polyester Fiber Braided
- W.P：20bar
- B.P：60bar
- Length：50m~100m
- Temperature：-30c~80c
- Certification：Ce SGS ISO9001
- Transport Package：Well Packed by OPP Film or as Request.
- Specification：CE SGS ISO9001
- Trademark：PASSION
- Origin：Zhejiang China
- HS Code：40093100
- Production Capacity：400000 Meters , Month, 3 Production Lines
Description
Overview
Product Description
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m 3/16" 5 12 20 300 60 900 100 1/4" 6 13 20 300 60 900 100 0.0256 0.17 5/16" 8 15 20 300 60 900 100 0.0271 0.22 3/8" 10 17 20 300 60 900 100 0.036 0.26 1/2" 13 22 20 300 60 900 100 0.0634 0.4 5/8" 16 25 20 300 60 900 50 0.1095 0.45 3/4" 19 29 20 300 60 900 50 0.146 0.7 1" 25 36 20 300 60 900 50 0.171 0.85
Company Profile
Hangzhou Paishun Rubber and Plastic Co.,Ltd is a company that specialized in manufacturing various Rubber Hoses, Rubber Products,Rubber Fittings and Hydraulic Hose Assembly.
* We produce various Steel Spiral Hoses, High Pressure Oil Hoses, Water Hoses, general used Oil Hoses, Air-Conditioner assembled Hoses, Joint Hoses, Twist Hoses, Radiator Hoses, Special Shaped Rubber Hoses, Special Ebow Rubber Tubes, Silicone Hoses, Fluorine Hoses and EPDM Hose. Also we supply the production of OEM and the model production of special shaped Rubber Hoses.
* Most of our products get TS16949 certification and ROHS certification.
PASSION HOSE!
PASSION FOR YOU!
PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Hydraulic Rubber Hose:wire braided reinforced hoses SAE 100 R1AT/1SN, SAE 100 R2AT/2SN, SAE100R5, SAE 100R16 textile braided reinforced hoses SAE 100R3, SAE 100R4, SAE 100R6 thermoplastic hose SAE 100R7, SAE 100R8 wire spiralled
reinforced hoses
SAE 100R9, SAE100R10, EN856 4SP, EN856 4SH, SAE 100R12, SAE 100R13, SAE 100R15
Oil resistant Hose Oxygen Acetylene Hose Acid Aikali Resistant Hose Special Pure Rubber Hose Heat Resistant Hose Wear Resistant Hose Air Hose/water hose Gas LPG Hose Twin Welding Hose Freon Charging Hose Automotive air condition hose
A. We can produce both cover, according to your request.
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company or a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
Rubber Air Hose (groove surface)
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product Parameters
Specification:

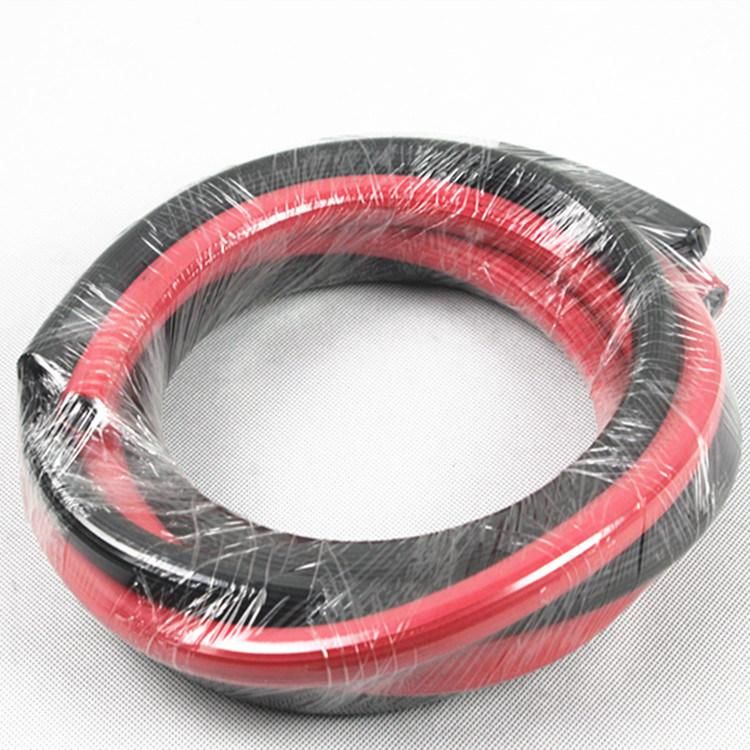

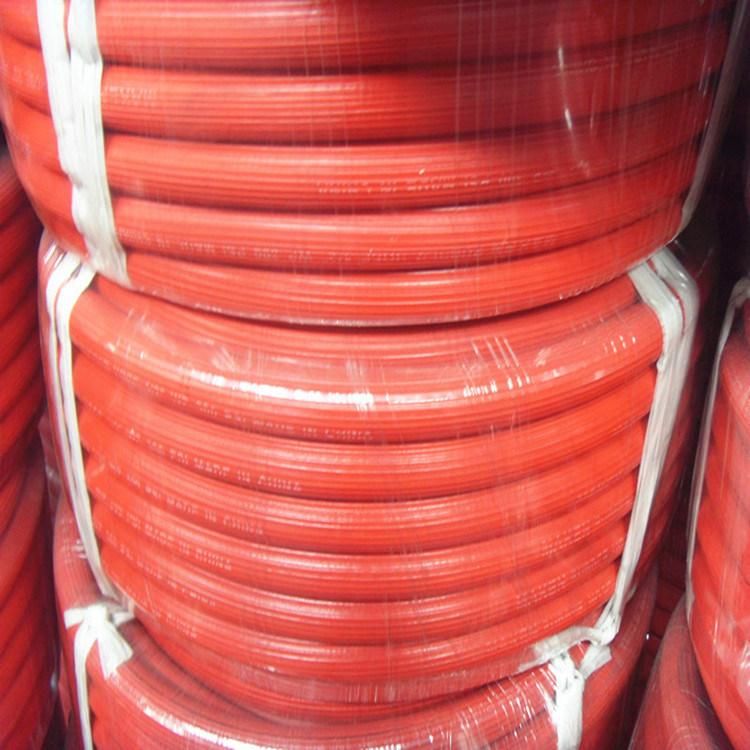

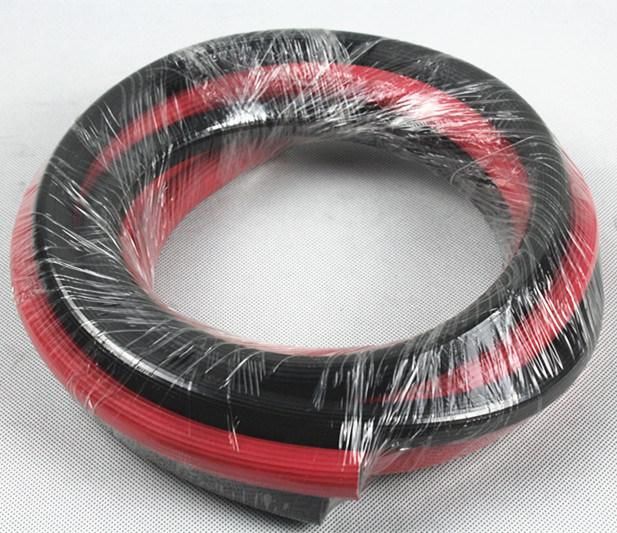

Hose photos:
Company Profile
We are a professional manufacturer with 3 production lines.
Hangzhou Paishun Rubber and Plastic Co.,Ltd is a company that specialized in manufacturing various Rubber Hoses, Rubber Products,Rubber Fittings and Hydraulic Hose Assembly.
* We produce various Steel Spiral Hoses, High Pressure Oil Hoses, Water Hoses, general used Oil Hoses, Air-Conditioner assembled Hoses, Joint Hoses, Twist Hoses, Radiator Hoses, Special Shaped Rubber Hoses, Special Ebow Rubber Tubes, Silicone Hoses, Fluorine Hoses and EPDM Hose. Also we supply the production of OEM and the model production of special shaped Rubber Hoses.
* Most of our products get TS16949 certification and ROHS certification.
PASSION HOSE!
PASSION FOR YOU!
PASSION for Production: It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.
PASSION for Sales: We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.
PASSION for Service: PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!
Hydraulic Rubber Hose:
reinforced hoses
SAE 100R9, SAE100R10, EN856 4SP, EN856 4SH, SAE 100R12, SAE 100R13, SAE 100R15
Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.
Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.
Q3. Are you a trade company or a factory?
A. We are a factory, welcome to visit our factory.
Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
