Rubber Content of "Paishun's Hose":  The NBR Content of Hose Inner Tube is 42% and 40% in Hose Outer Tube.
The High NBR Material Content makes the Hose has excellent "permeability", so the Hose is able to not " bulge" even being immersed in High grade gasoline after 72 hours.

The Electrical Conductivity of Hose Assembly: When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, to make sure the Hose has "stable conducting electrostatic property", we test the " Hose Electrical Conductivity" with Ammeter.

Pressure Test: Every batch Hose will be tested under the Test Pressure (10times higher than the Hose's W.P.) and keeps at least 3 minutes, this is to avoid any invisible holes appear on Hose.

The Wire we use: The tensile strength of Single Wire we use is 2750 Newton high strength wire, the wire diameter is 0.295mm.

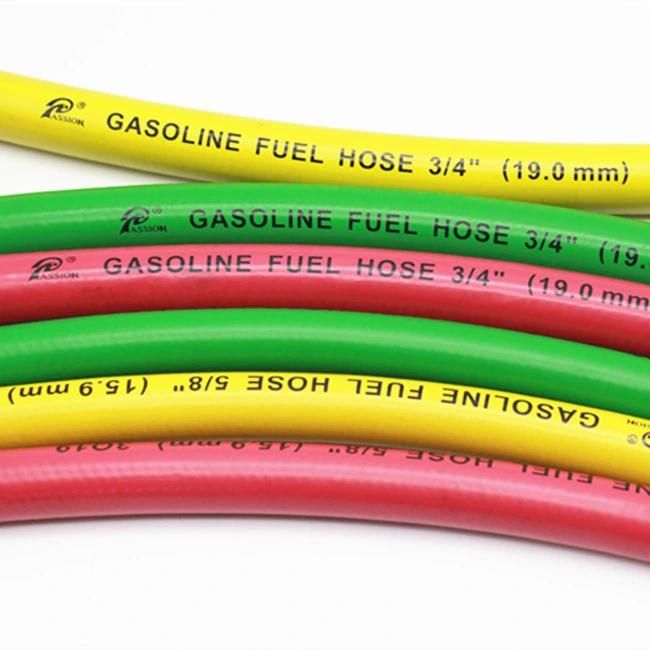

Characteristic of PASSION® Petrol Pump Hose:

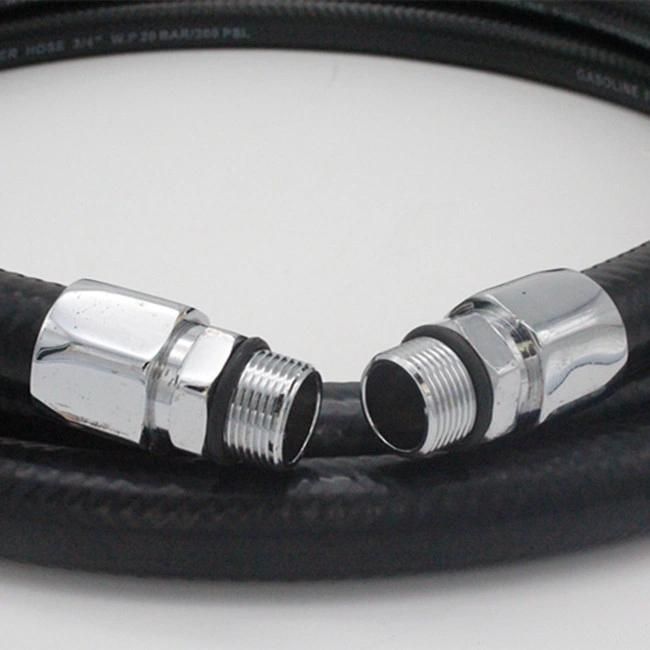

When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, so that the Hose has "stable conducting electrostatic property" , it is safe in Service Station Application.

PASSION® Petrol Pump Hose Application:

* Can be used on gasoline, fuel, diesel and other
* Can be used in low and high flow / pressure pumps

Technical specifications:
Internal gauge 3/4 "19,1mm
External Grip 28mm
Weight 3.2KG

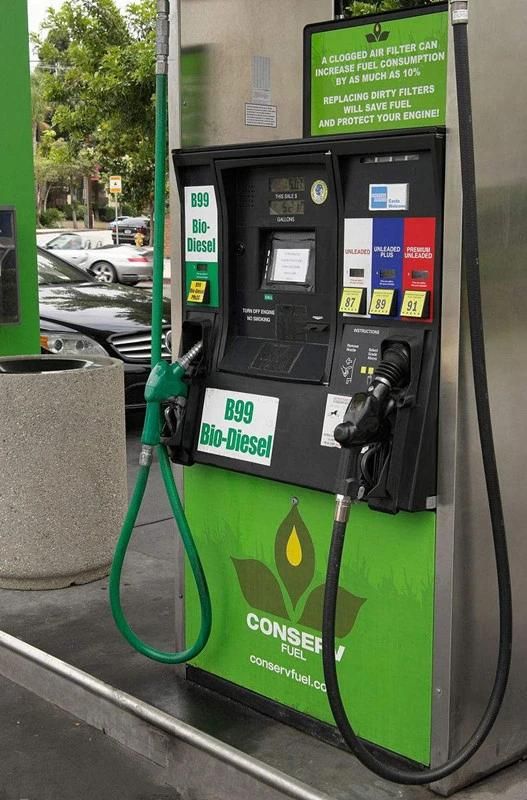

Hose Application Picture:
