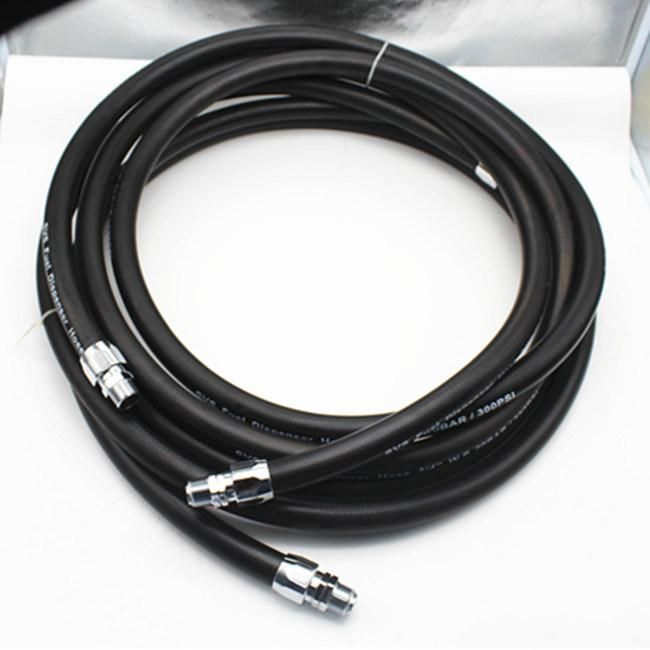

3/4 Inch Flexible Fuel Dispensing Hose with Reusable Fittings
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Oil Hose
- Color：Color
- Type：Fuel Supply Pump Hose
- Brand：Passion
- Surface：Smooth
Base Info
- Model NO.：3,4inch Fuel Dispensing Hose
- Inner Tube：NBR
- Reinforcement：One Braid of Steel Wire
- Cover：NBR
- Temperature：-40c - 80c
- Size：5,8", 3,4", 1"
- Length：20m, 50m
- Certification：Ce TUV ISO9001
- Transport Package：Well Packed by Poly Stripes
- Specification：CE SGS ISO9001
- Trademark：PASSION
- Origin：Zhejiang China
- HS Code：40092100
- Production Capacity：20000 Meters , Month
Description
Characteristic of PAISHUN® Fuel Dispensing Hose:
When our workers do the assembling, we'll make sure that the Connectors to be well connected to Hose Wire, so that the Hose has "stable conducting electrostatic property" , it is safe in Service Station Application.
PAISHUN® Fuel Dispensing Hose Application:
* Can be used on gasoline, fuel, diesel and other
* Can be used in low and high flow / pressure pumps
Technical specifications:
Internal gauge 3/4 "19,1mm
External Grip 28mm

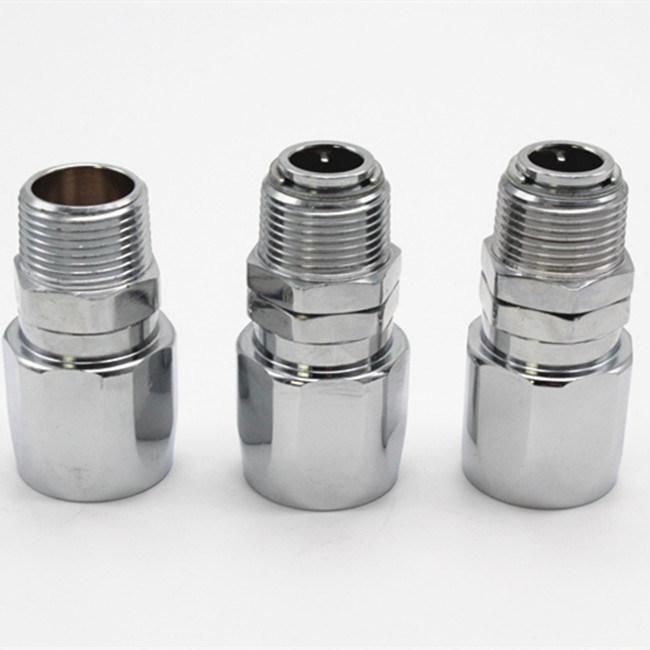

Coupling Types: BSPT / BSPP / NPT
Swivel (Rotary) coupling
Non-Swivel ( Unrotary) coupling

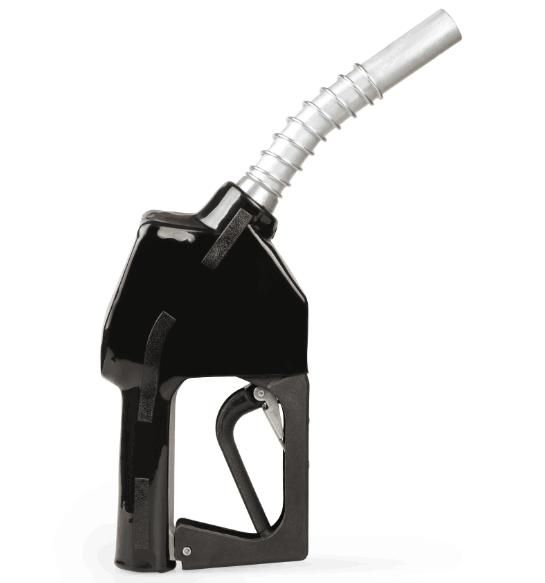

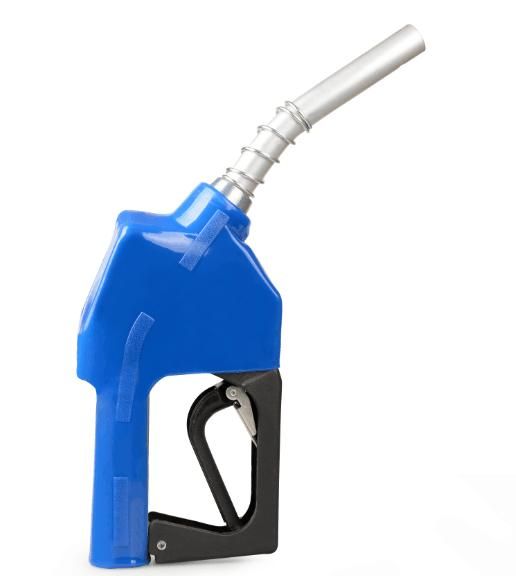

Fuel Nozzle Specifications:
Automatic Fuel Nozzle
Item Number: PS-A03
Inlet Size: BSPP / BSP / NPT3/4"
Outlet Size: 15/16"; 13/16"
Maximum flow: 60L/Min; 45L/Min
W.P. : 0.2MPA
Weight: 1.1KG
Application: For diesel, gasoline and kerosene service.
Material: Aluminium Alloy

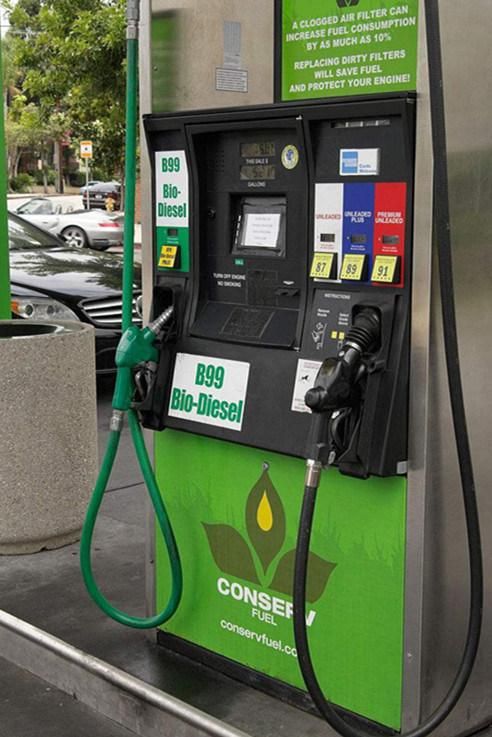

Application Picture:
