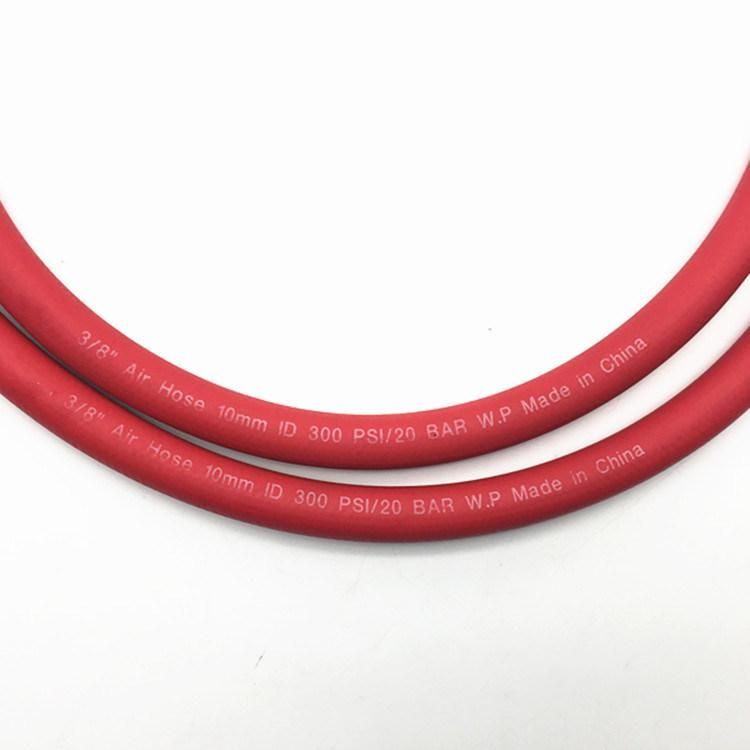

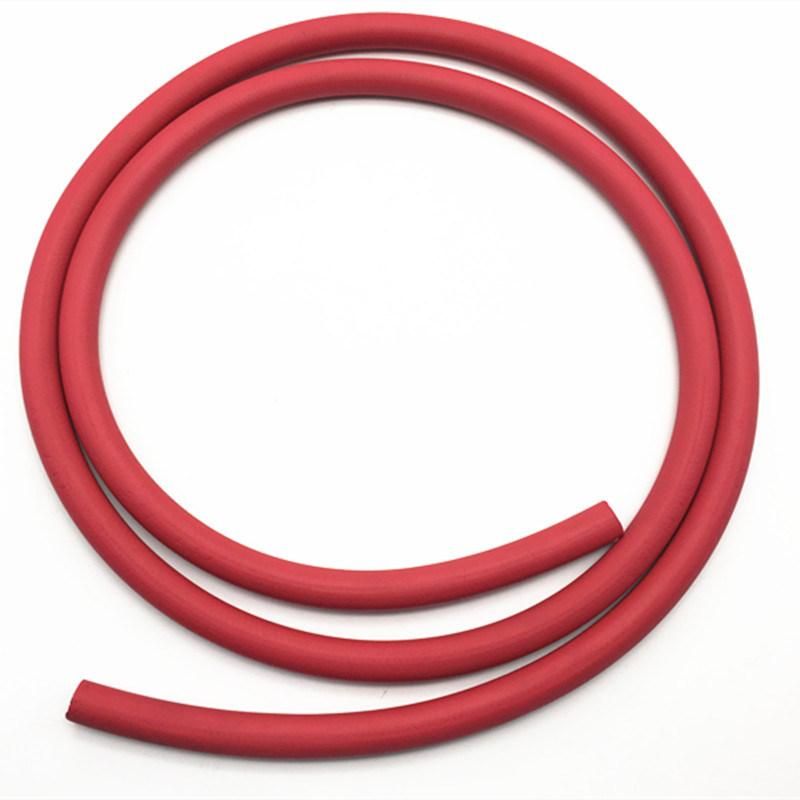

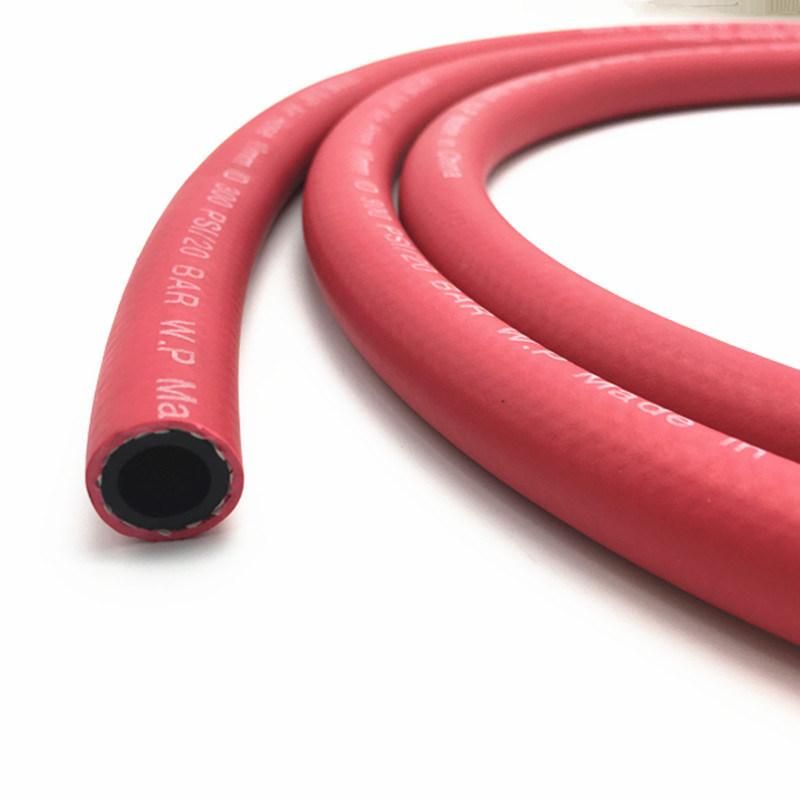

ISO 3821 W. P 20bar SBR Material Air Compressor Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：SBR & Nr
- Capability：Rubber Air Hose
- Color：Black, Red, Yellow, Blue, Green, Orange, etc.
- Size：5,16" Inch
- Inner Diameter：8mm
- Outer Diameter：15mm
Base Info
- Model NO.：5,16" Inch
- Certification：Ce, SGS, SUV
- Cover：Nr & SBR Synthetic Rubber
- Standard Length：50m, 100m
- Hose Surface：Smooth Surface
- Reinforcement：High Tensile Polyester Fiber Braided
- Transport Package：OPP Film or Woven Poly Strips
- Specification：5,16"
- Trademark：PASSION
- Origin：China ( Mainland )
- HS Code：40093100
- Production Capacity：300000meters,Month
Description
Overview
Product Description
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m. Product ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m PRA-05 3/16" 5 11.5 20 300 60 900 100 0.02 0.15 PRA-06 1/4" 6 13 20 300 60 900 100 0.025 0.17 PRA-08 5/16" 8 15 20 300 60 900 100 0.03 0.22 PRA-10 3/8" 10 17 20 300 60 900 100 0.04 0.26 PRA-13 1/2" 13 21 20 300 60 900 100 0.07 0.4 PRA-16 5/8" 16 24 20 300 60 900 50 0.06 0.45 PRA-19 3/4" 19 29 20 300 60 900 50 0.07 0.7 PRA-25 1" (1b) 25 36 12 180 36 540 50 0.09 0.85 PRA-25-2 1" (2b) 25 37 20 300 60 900 50 0.1 0.95 PRA-32 1-1/4" 32 44 10 150 30 450 50 0.16 1.4 PRA-38 1-1/2" 38 51 10 150 30 450 50 0.20 1.7 PRA-51 2" 51 65 10 150 30 450 20 0.20 2.2
Packaging & Shipping
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Company Profie:
Paishun is a leading rubber hose manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.

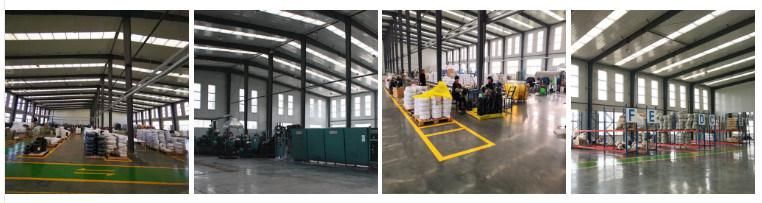

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.Certifications
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.
Exhibition:
FAQ
A:We are a factory for over 13 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.
Rubber Air Hose (smooth surface)
Construction: Tube: NR& SBR synthetic rubber.Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m. Product Parameters
