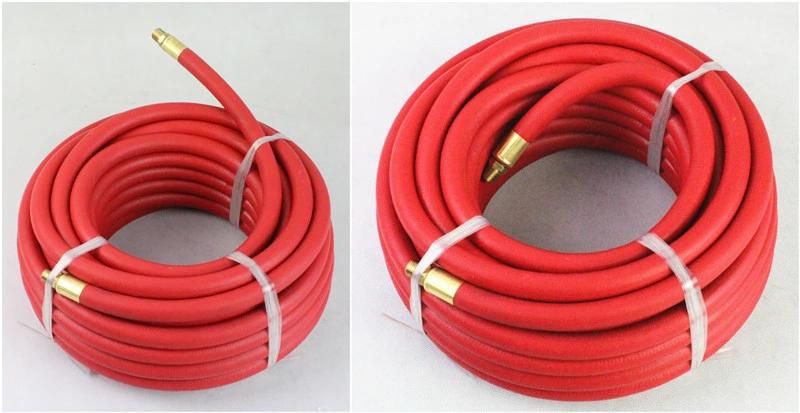

High Pressure Aging Resistant Fiber Braided Red Rubber Air Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：SBR & Nr
- Capability：Rubber Air Hose
- Color：Black, Red, Yellow, Blue, Green, Orange, etc.
- Size：5,16" Inch
- Inner Diameter：8mm
- Outer Diameter：15mm
Base Info
- Model NO.：8mm
- Certification：ISO 2398
- Cover：Nr & SBR Synthetic Rubber
- Standard Length：50m, 100m
- Hose Surface：Smooth Surface
- Reinforcement：High Tensile Polyester Fiber Braided
- Feature：Abrasion and Aging Resistant
- Transport Package：OPP Film or Woven Poly Strips
- Specification：5,16"
- Trademark：PASSION
- Origin：China ( Mainland )
- HS Code：40093100
- Production Capacity：300000meters,Month
Description
Overview
Product Description
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m PRA-05 3/16" 5 11.5 20 300 60 900 100 0.02 0.15 PRA-06 1/4" 6 13 20 300 60 900 100 0.025 0.17 PRA-08 5/16" 8 15 20 300 60 900 100 0.03 0.22 PRA-10 3/8" 10 17 20 300 60 900 100 0.04 0.26 PRA-13 1/2" 13 21 20 300 60 900 100 0.07 0.4 PRA-16 5/8" 16 24 20 300 60 900 50 0.06 0.45 PRA-19 3/4" 19 29 20 300 60 900 50 0.07 0.7 PRA-25 1" (1b) 25 36 12 180 36 540 50 0.09 0.85 PRA-25-2 1" (2b) 25 37 20 300 60 900 50 0.1 0.95 PRA-32 1-1/4" 32 44 10 150 30 450 50 0.16 1.4 PRA-38 1-1/2" 38 51 10 150 30 450 50 0.20 1.7 PRA-51 2" 51 65 10 150 30 450 20 0.20 2.2

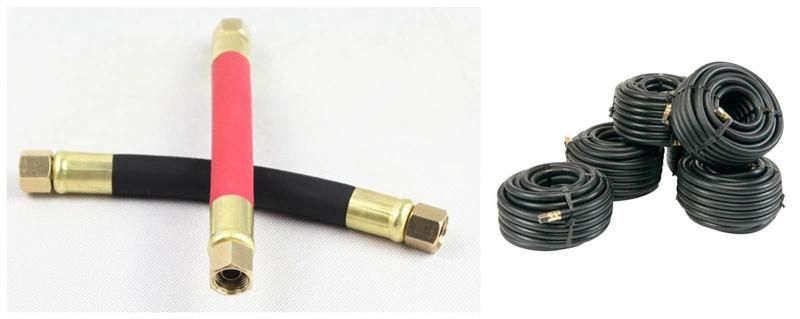

Paishun Hose with MNPT fitting:
Paishun hose with BSPF fitting:
Company Profile

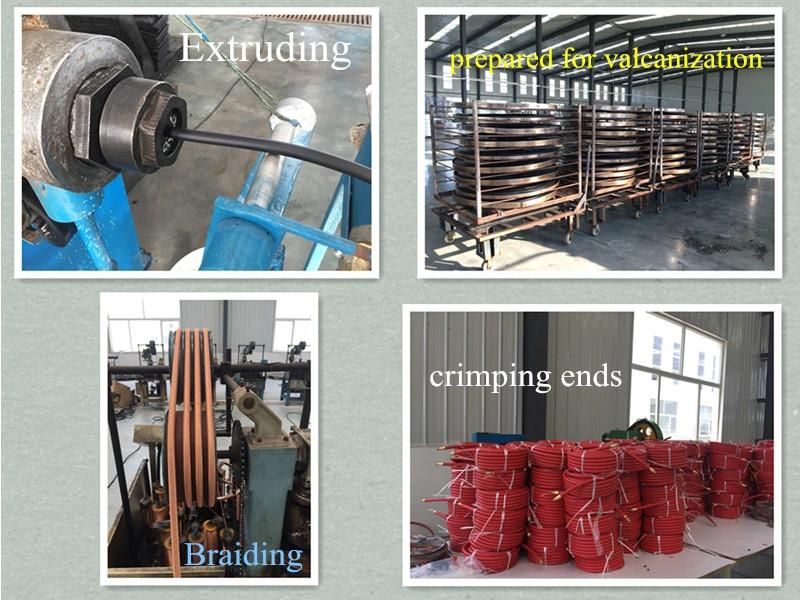

Paishun Production Procedure
( Extruding-vulcanization-braiding-Extruding outer cover-Vulcanization-Crimping-Testing-Packing)

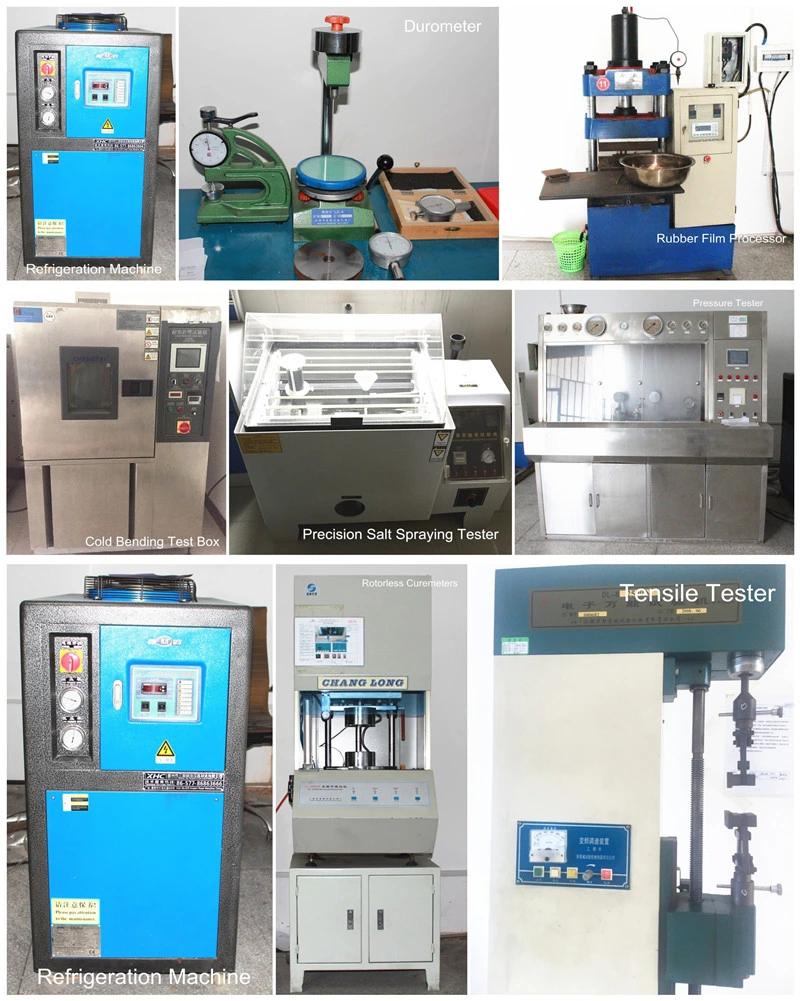

Quality Control
Paishun Quality Control System:
Paishun Team and Clients:
For more informaiton, welcome to send inquiry or call Zoe directly:
Web: http//cnparshun.en.made-in-china.com
Rubber Air Hose (smooth surface)
Construction: Tube: NR& SBR synthetic rubber.Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
