High-Tensile Steel Wire SAE R13 Hydraulic Hose
Hangzhou Haikuo Rubber and Plastic Products Co., Ltd.- Material：Inner NBR, Outer Cr
- Capability：Rubber Oil Hose
- Color：Black,Grey,Blue,Yellow,Red,etc
- I.D：3,4"~2"
- O.D：32.1-71.1mm
- W.P：345bar
Base Info
- Model NO.：High-tensile Steel Wire SAE R13 Hydraulic Hose
- B.P：1379bar
- Reinforcement：Six Layer Steel Wire Spiral
- Length：Max. 100m
- Temperature：-40~121c Degree
- Surface：Cloth or Smooth Surface Hydraulic Hose
- Inner Tube：Neoprene
- Transport Package：Plastic Film
- Specification：ISO, SGS
- Trademark：High-Qua or OEM
- Origin：Zhejiang, China (Mainland)
- Production Capacity：100000m,Month
Description
Burst PressureWeight in mm in mm psi mpa in mm psi mpa kg/m HQ-R13-12 3/4 19 1.26 32.1 5000 34.5 9.5 241 20000 137.9 1.65 HQ-R13-16 1 25.4 1.52 38.7 5000 34.5 12 305 20000 137.9 2.25 HQ-R13-20 1 1/4 31.8 1.96 49.8 5000 34.5 16.5 419 20000 137.9 3.6 HQ-R13-24 1 1/2 38.1 2.25 57.3 5000 34.5 20 508 20000 137.9 4.75 HQ-R13-32 2 50.8 2.79 71.1 5000 34.5 25 635 20000 137.9 6.90

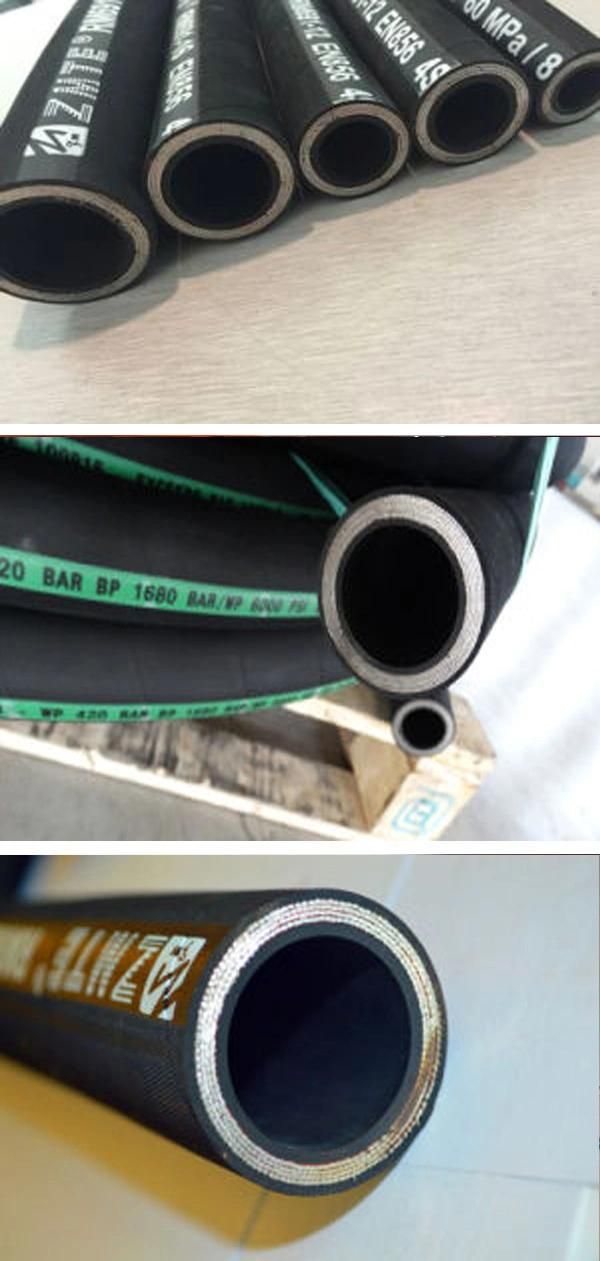

Pictures of Hydraulic Hose r13:
Pictures of Hydraulic Hose r13:
