• Model NO.：Oil Tank Hose
• Length：20m, 40m
• Application：Oilfield Truck, Oil Tank
• Temperature：-40~121
• Surface：Flat Surface
• MOQ：500m
• Certificate：ISO9001
• Model Number：Oil Tank Hose

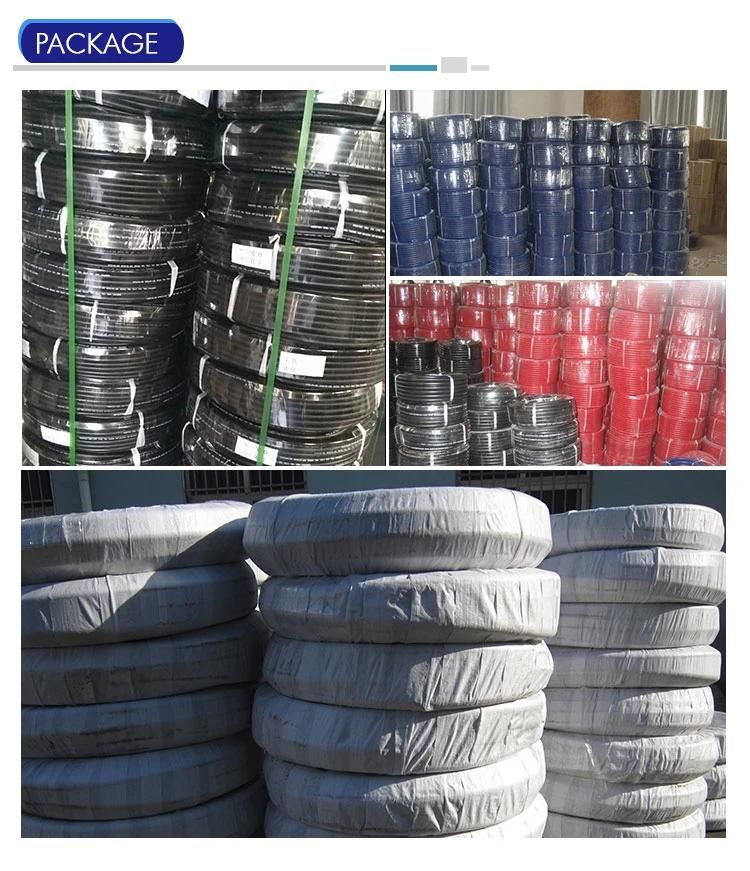

• Transport Package：Well Be Packed in Plastic Film ,Woven Bag.
• Specification：ROHS, CE, SGS certificate
• Trademark：OEM or HIGH-QUA
• Origin：Zhejiang
• HS Code：4009410000
• Production Capacity：50000m Per Week

I.D.O.D.W.P.REIFORCE LAYERWEIGHTUNIT LENGTHin.mmmmpsi.mpa.kg/mm/roll1"          25                    37                      300             2.07    4-401 1/4"32443002.074-401 1/2"38513002.074-402"51653002.074-402.5"64793002.074-403"76913002.074-403.5"891063002.074-404"1021213002.074-405"1271463002.074-206"1521753002.076-207"2032323002.078-208"2542873002.0710-20To 10 I.D.

Specifications
China manufacture High-Pressure Hydraulic Hose 4SP
1. I. D 1/4''~2''
2. W. P6550psi~2395psi
3. NBR & CR
4. Abrasion-resistant

Features of  Hydraulic Hose 4SP
Application: Very high-pressure applications used for petroleum-based hydraulic fluids
Inner tube: Neoprene
Reinforcement: Four alternating layers of spiraled high-tensile steel wire
Cover compound: Neoprene
Temperature range: -40° F 212° F; -40oC~121oC

Remarks:
1. Sample is available
2. OEM is welcome
3. Just feel free to contact us if any questions

Part No.
 Hose Size ID
 Hose OD
 Work Pressure
 Bend Radius
 Burst Pressure
 Weight
 in
 mm
 in
 mm
 psi
 mpa
 in
 mm
 psi
 mpa
 kg/m
 HQ-4SH-12
 3/4
 19
 1.268
 32.2
 6000
 41.4
 11
 279
 24000
 165.5
 1.53
 HQ-4SH-16
 1
 19
 1.524
 38.7
 5500
 37.9
 13.5
 343
 22000
 151.7
 2.06
 HQ-4SH-20
 1 1/4
 25.4
 1.791
 45.5
 4700
 32.4
 18.5
 470
 18800
 129.6
 2.46
 HQ-4SH-24
 1 1/2
 31.8
 2.106
 53.5
 4200
 29
 22.5
 572
 16800
 115.8
 3.35
 HQ-4SH-32
 2
 50.8
 2.681
 68.1
 3650
 25.2
 28
 711
 14600
 100.7
 4.55

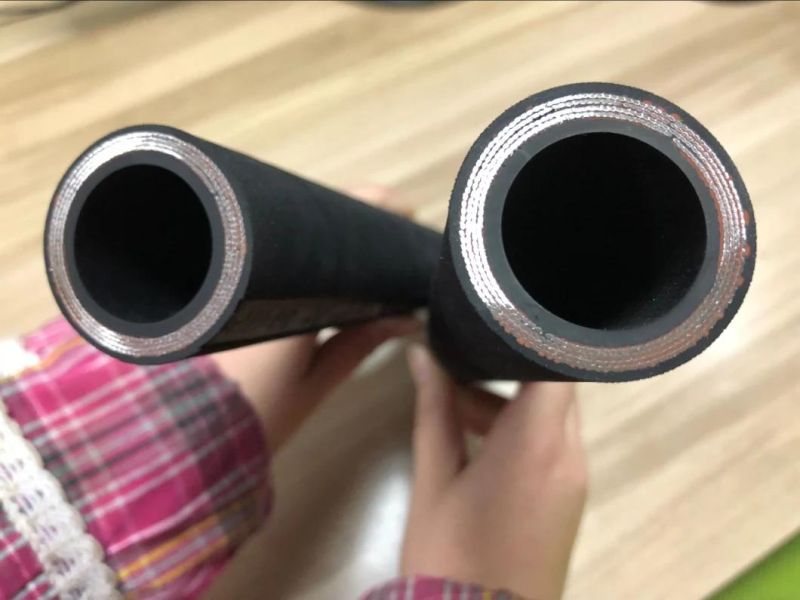

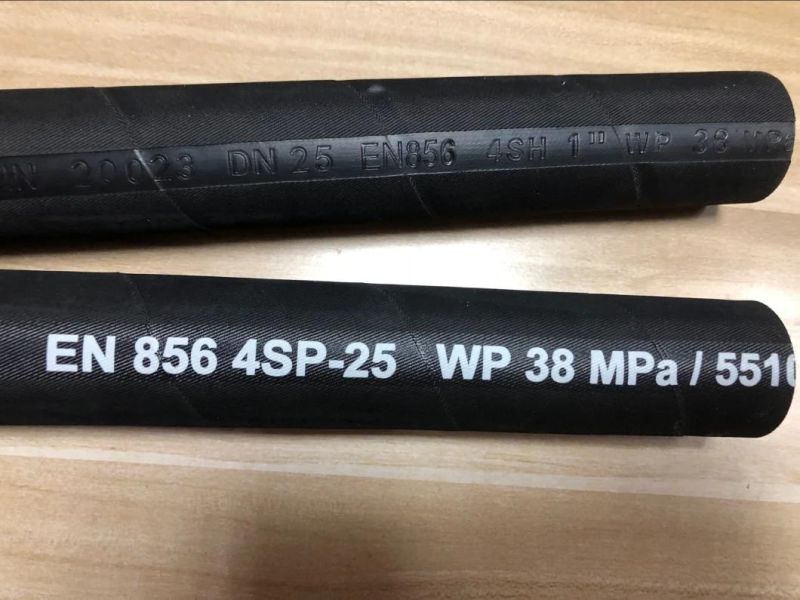

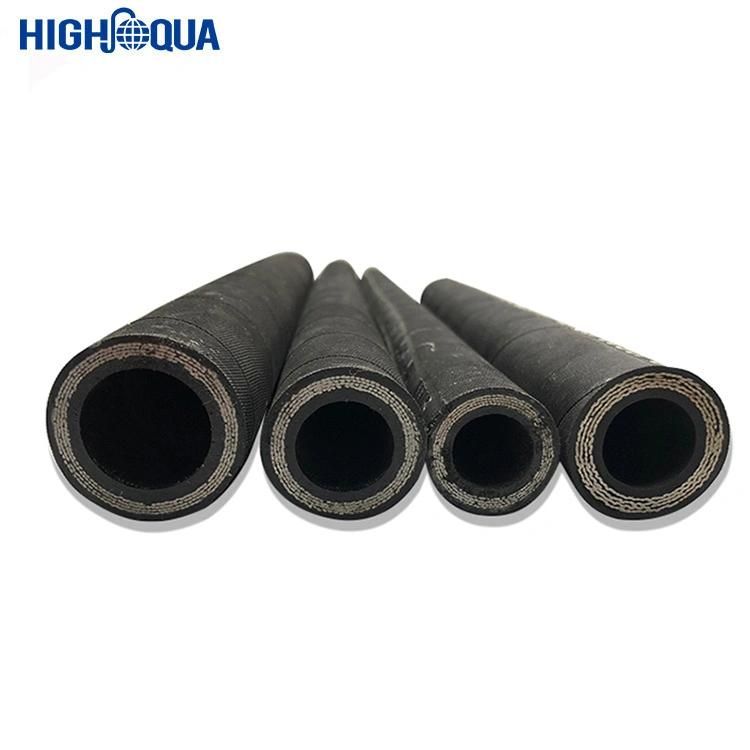

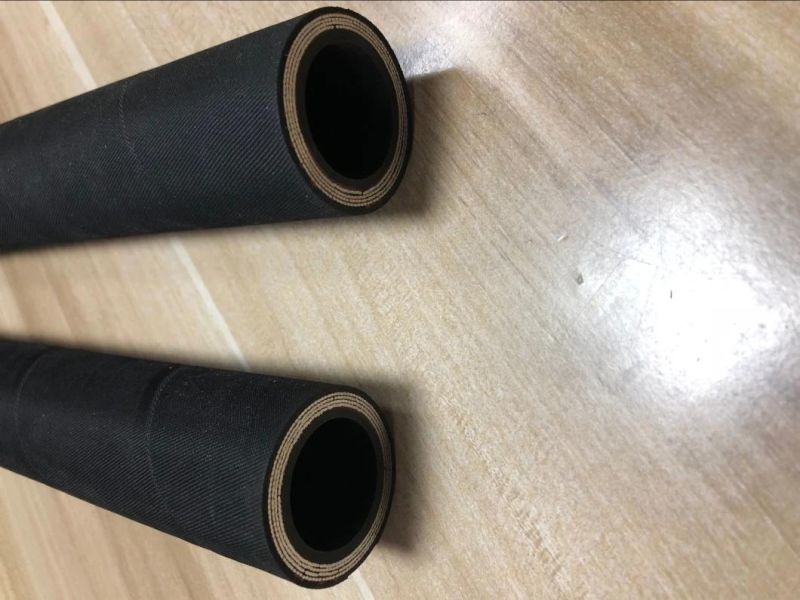

Pictures of Product:








 Exhibition show
