• Model NO.：SPGW
• Color and Dimension：Accept Customized Products
• OEM, ODM：Yes
• Reciprocation Speed：up to 1.5m,S
• Pressure Data：up to 50MPa
• Transport Package：Carton
• Specification：40-13000mm
• Trademark：morgan
• Origin：China
• HS Code：4016931000
• Production Capacity：100000PCS,Month

Temperature-30°C / +120°C depending on the material selectedPressure50 MpaSpeed1.5 m/sMediasMineral hydraulic oils
Glycol/oil emulsions
Water/oil

Materials
Elastomer
NBR 80 Shore A
FKM 80 Shore A
Friction ring
Bronze-filled PTFE
Back-up rings
Polyoxymethylene (POM)
Applications
Mobile machinery
Hydraulic cylinders

Advantages
Low friction coefficient; no stick-slip effect
Possible increase in extrusion gaps
Excellent extrusion resistance even during pressure peaks
Excellent abrasion resistance
Assembled by deformation

Extrusion gaps

Pressure
MPaRadial extrusion gap
F/210 MPa0.5025 MPa0.5035 MPa0.4040 MPa0.3050 MPa0.30

Surface roughness

RoughnessDynamic surface areaStatic surface areaGroove flanksRa0.05 - 0.2 µm≤ 1.6 µm≤ 3.2 µmRz0.4 - 1.6 µm≤ 6.3 µm≤ 10.0 µmRmax0.63 - 2.5 µm≤ 10.0 µm≤ 16.0 µm

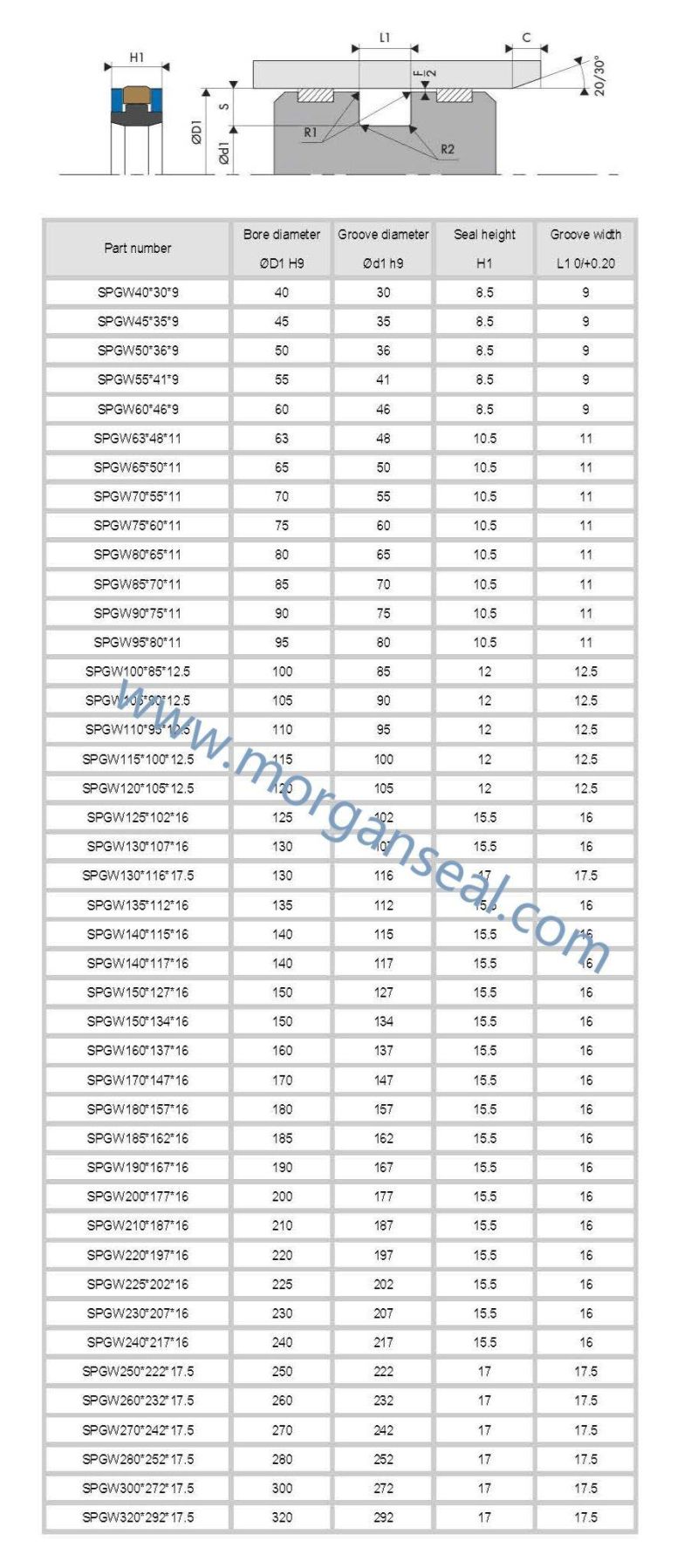

Chamfers and radius

Radial section
SRadius
R1Radius
R2Chamfer
C5.000.200.702.507.500.201.205.0011.500.201.808.0014.000.202.5010.00

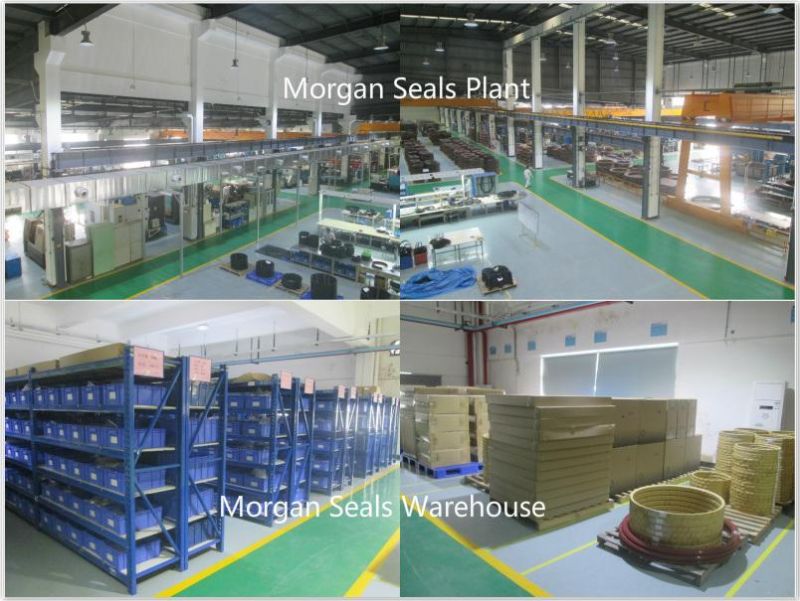

Morgan Seals has the biggest vulcanizing machine(4000T) and different kinds of seal moulds. So for the non standard hydraulic seals, please do not hesitate to contact with us. The following is the the picture of Morgan production line and warehouse:

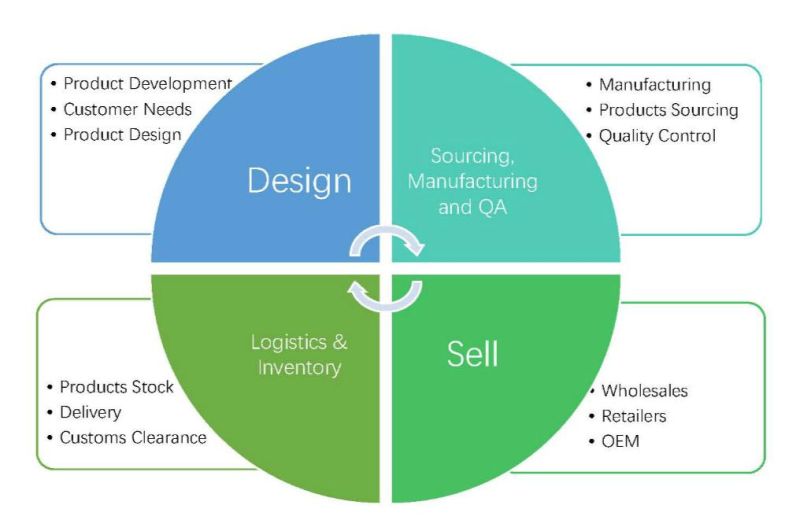

Our services:
