• Model NO.：Smooth Surface Rubber Air Hose
• Length：100, 50meters
• Reiforcement：Fiber Braid
• Cover：Smooth.Cloth
• Product Standard：ISO 2398
• Certification：Rosh
• Delivery Time：Within 15 Days
• Transport Package：Well Be Packed in Plastic Film ,Woven Bag.
• Specification：ROHS, CE, SGS certificate
• Trademark：OEM or HIGH-QUA
• Origin：Zhejiang
• HS Code：4009410000
• Production Capacity：500000m Per Week

I.D.O.D.W.P.REIFORCE LAYERWEIGHTUNIT LENGTH mmin.mmpsi.mpa.kg/mm/roll3/164.80.4511.53002.0710.151001/46.40.63163002.0710.181005/167.90.5915.03002.0710.221003/89.50.7519.13002.0710.271001/212.70.9123.13002.0710.401005/815.90.9624.53002.0710.501003/419.11.1429.03002.0710.751003/419.11.1830.03002.0720.80100125.41.4236.13002.0710.95100125.41.4236.13002.0720.951001 1/431.81.7544.53002.0720.70501 1/238.1254.03002.0720.8550




Product description :


1.Material: inner tube is made of SBR or NR; or SBR&NR blend; outer cover is made of SBR or NR; or SBR&NR blend

2.Structure:
1.Common type: Interior lining +Strengthen lining +Exterior lining.

2.Strength type (three lining and two weaving fiber): Add middle rubber lining and a weaving fiber base

                    on the common type.

3.Color: black, red, blue, green, yellow, white, grey

4.Temperature: -25ºC-70ºC

Product Application

For the transportation of high pressure air or water liquid.

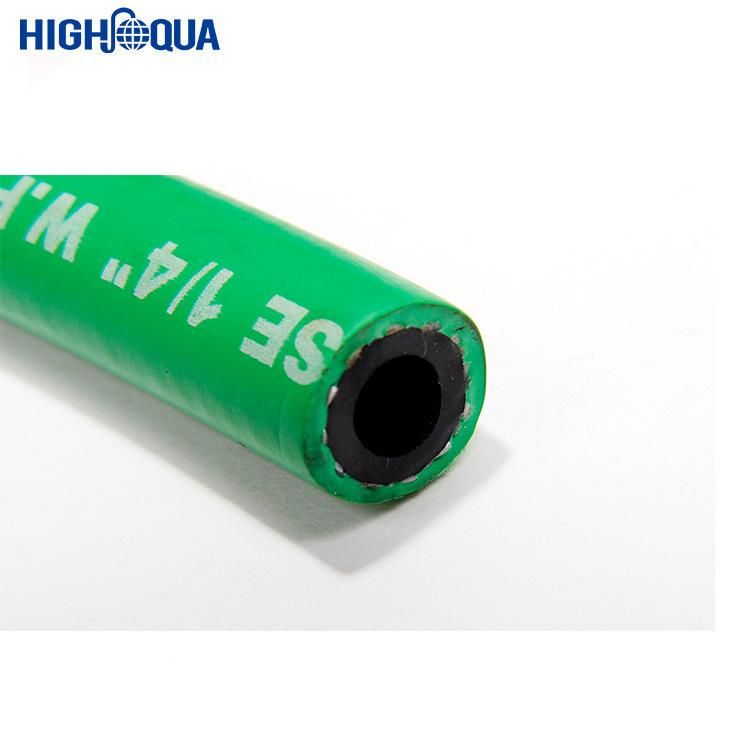

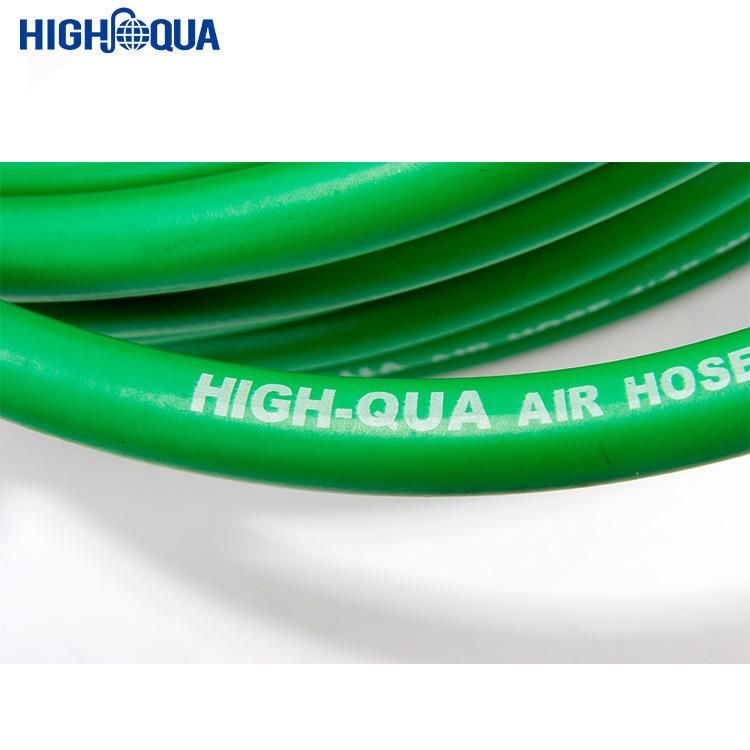

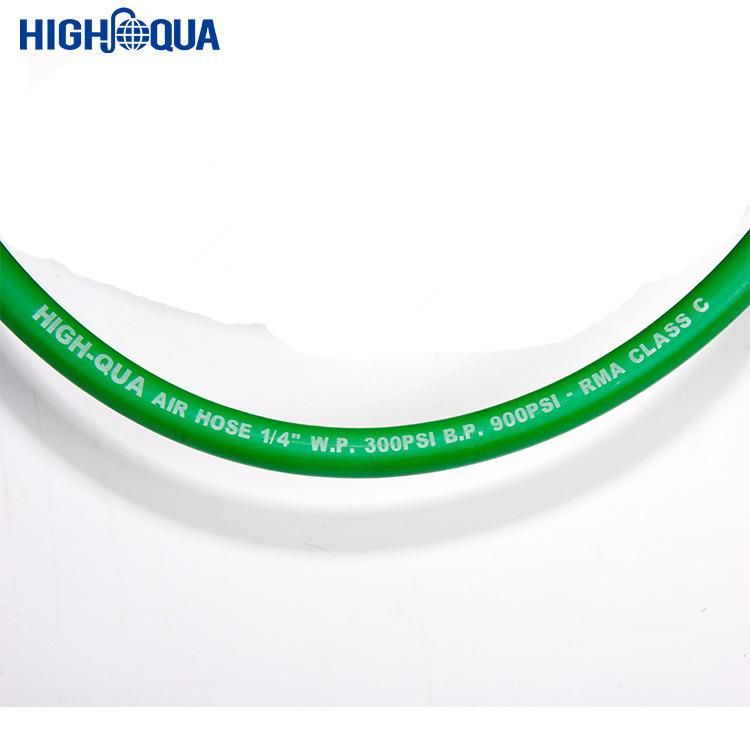

Product showing
