• Model NO.：ZM-CH
• Origin：Hebei, China (Mainland)
• Production Capacity：3500000 PCS,Year

  Item

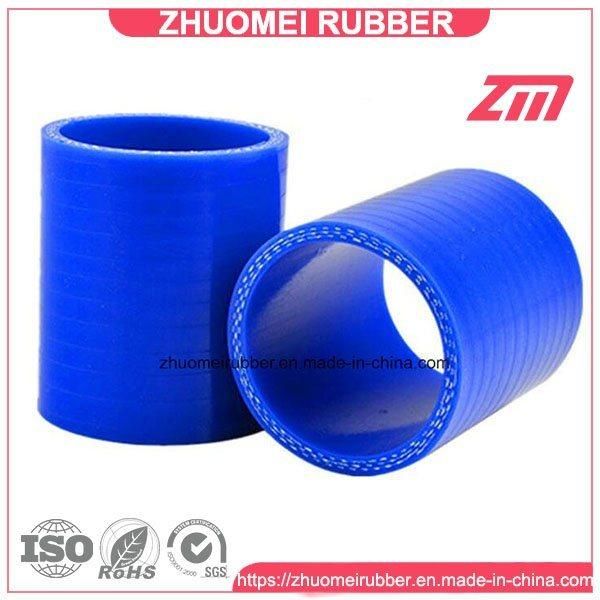

 Reinforced Straight Silicone Coupler Hose

Material

Silicone

Structure

1. Tube- Silicone

2. Reinforcement-Polyester / Aramid / Glass fibre, generally 4 ply

3. Cover- Silicone

 Inside Diameter

1inch~5inch

Wall Size

4mm/4.5mm/5mm

Layer

4~5Ply (4 interlayer = 5 Layers)

 Colors

Black / Red / Blue

 Work temperature

-76°F (-60°C ) to +500°F (+260°C)

Bursting Pressure

2MPA

Applications:

Joining your intake pipe to the throttle body assembly, air metering assembly, intercooler, BOV pipe, or turbo inlet/outlet.

Custom compressor, intercooler or inlet piping for turbo/supercharged car

Custom cold air intake for nonturbo car

Replacement of all factory rubber parts

These silicone parts can be used in trucks, recreational vehicles, boats, or anything else with an engine.

Feature:

1. Made of High Quality Silicone

2. For High Temperature and High Boost Application.
3. 4-Ply Polyester for Strong Reinforcement
4. Different Thickness For Your Choice,From 4mm,4.5mm,5mm
5. Withstands Operating Temperatures from -70ºC to 260ºC Degrees.

6. Ideal for heavy duty pressure connections in hostile engine environments, extreme temperatures and various pressure ranges where high performance levels are required.
