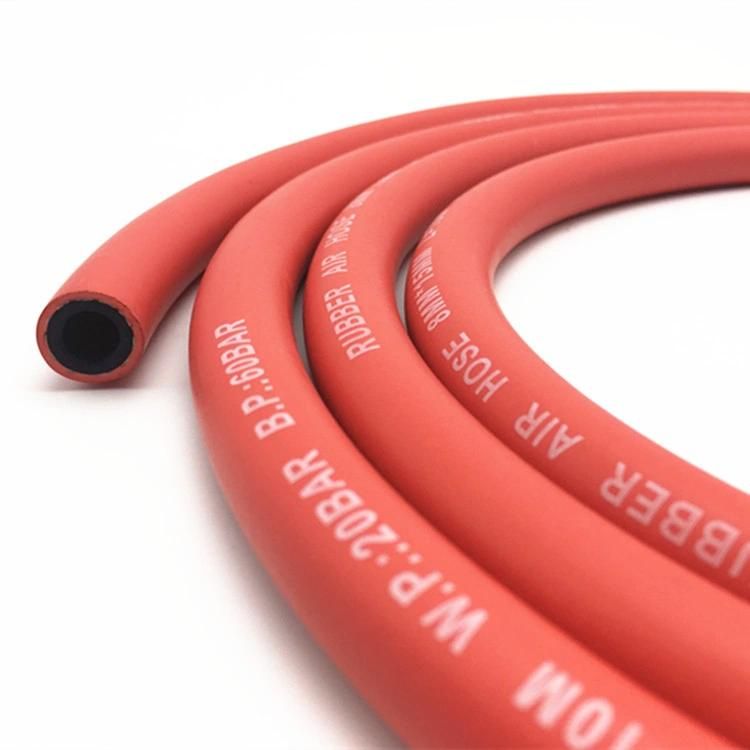

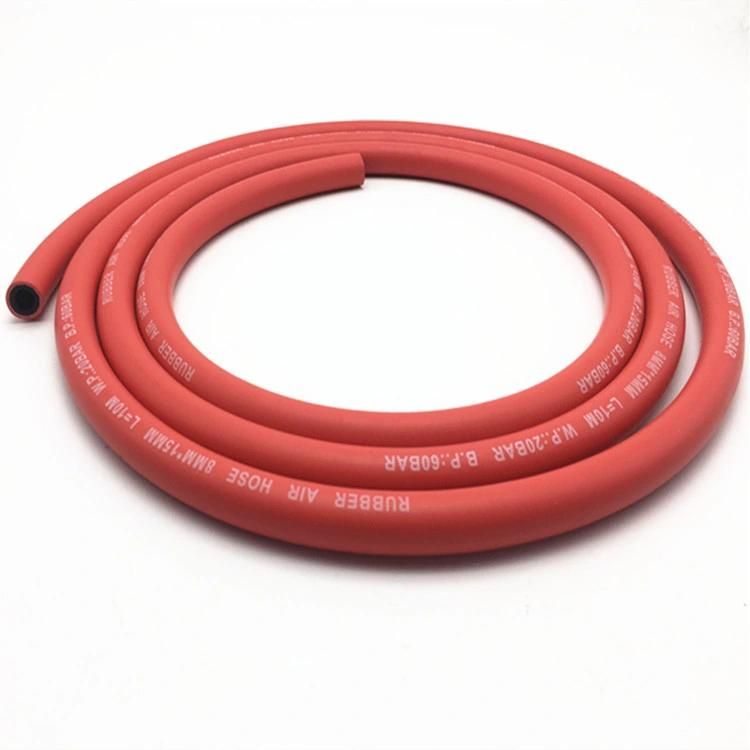

10mm Smooth Surface W. P 20 Bar Compressed Air Hose
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：SBR & Nr
- Capability：Rubber Air Hose
- Color：Black, Red, Yellow, Blue, Green, Orange, etc.
- Size：3,8" Inch
- Inner Diameter：10mm
- Outer Diameter：17mm
Base Info
- Model NO.：10MM
- Certification：Ce, SGS, SUV
- Cover：Nr & SBR Synthetic Rubber
- Standard Length：50m, 100m
- Hose Surface：Smooth Surface
- Reinforcement：High Tensile Polyester Fiber Braided
- Weight：0.24kg,M
- Feature：Abrasion Resistant
- Resistant：Aging Resistant
- Transport Package：OPP Film or Woven Poly Strips
- Specification：3,8"
- Trademark：PASSION
- Origin：China ( Mainland )
- HS Code：40093100
- Production Capacity：300000meters,Month
Description
Overview
Product Description
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m. Product ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m PRA-05 3/16" 5 11.5 20 300 60 900 100 0.02 0.15 PRA-06 1/4" 6 13 20 300 60 900 100 0.025 0.17 PRA-08 5/16" 8 15 20 300 60 900 100 0.03 0.22 PRA-10 3/8" 10 17 20 300 60 900 100 0.04 0.26 PRA-13 1/2" 13 21 20 300 60 900 100 0.07 0.4 PRA-16 5/8" 16 24 20 300 60 900 50 0.06 0.45 PRA-19 3/4" 19 29 20 300 60 900 50 0.07 0.7 PRA-25 1" (1b) 25 36 12 180 36 540 50 0.09 0.85 PRA-25-2 1" (2b) 25 37 20 300 60 900 50 0.1 0.95 PRA-32 1-1/4" 32 44 10 150 30 450 50 0.16 1.4 PRA-38 1-1/2" 38 51 10 150 30 450 50 0.20 1.7 PRA-51 2" 51 65 10 150 30 450 20 0.20 2.2
Detailed Photos
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Paishun is a leading rubber hose and fittings manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.

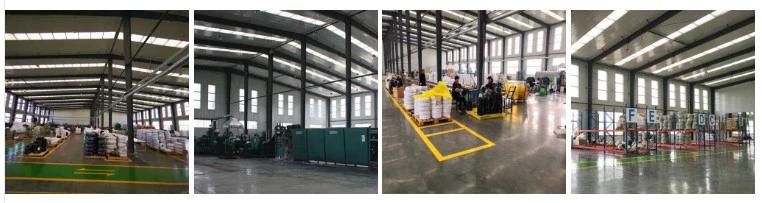

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, crimping machine and high speed braiding process, etc.Certifications
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition
FAQ
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
How to contact us?
If you want to Know More Details. Please feel free to Contact Us!
Web: http//cnparshun.en.made-in-china.com
Rubber Air Hose (smooth surface)
Construction: Tube: NR& SBR synthetic rubber.Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m. Product Parameters
Item code
Detailed Photos
Packaging & ShippingPacking & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile
Company Profie:
Paishun is a leading rubber hose and fittings manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.
We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, crimping machine and high speed braiding process, etc.Certifications
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition
Exhibition:
FAQ
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
How to contact us?
If you want to Know More Details. Please feel free to Contact Us!
Web: http//cnparshun.en.made-in-china.com
