5/16" Inch Domestic Cooking Used Gas Rubber Hose Assembly
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：Nitrile Rubber
- Capability：Rubber Gas Hose
- Color：Orange
- Type：BS En559 Orange Rubber Gas Hose
- Brand：Passion
- Model：BS En559
Base Info
- Model NO.：8mm
- Size：3,16"~3,8""
- Reinforcement：High-Tensile Fiber Braided
- Cover：NBR&PVC
- W.P：20bar
- B.P：60bar
- Temperature：-10c~90c
- Length：50m, 100m
- Transport Package：Well Packed by Woven Poly Stripes.
- Specification：5,16"
- Trademark：Passion
- Origin：Zhejiang China
- HS Code：40093100
- Production Capacity：400000 Meters,Month
Description
Overview
Product Description
Specification of Gas Hose
Rubber Gas / LPG Hose (Smooth Surface)
Construction: Tube: NBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM synthetic rubber. Abrasion resistant.
Temperature: -30ºC to +90ºC
Color: Orange or Black etc
Application: Mainly used for gas stove, circulation of liquefied fuel gas or gaseous fuel, LPG
Standard length: 50m, 100m.
Standard: BS EN559
Product Parameters
Item codeInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m 3/16" 5 11.5 20 300 60 900 100 0.028 0.15 1/4" 6 13 20 300 60 900 100 0.031 0.17 5/16" 8 15 20 300 60 900 100 0.0353 0.216 3/8" 10 17 20 300 60 900 100 0.0442 0.24 1/2" 12.7 22 20 300 60 900 100 0.0756 0.428 5/8" 16 25 20 300 60 900 50 0.0329 0.40 3/4" 19 29 20 300 60 900 50 0.0572 0.60 1" 25 36 20 300 60 900 50 0.099 0.84 1-1/4" 32 43 10 150 30 450 50 0.170 1.20 1-1/2" 38 50 10 150 30 450 50 0.190 1.39 2" 51 65 10 150 30 450 50 0.410 1.80

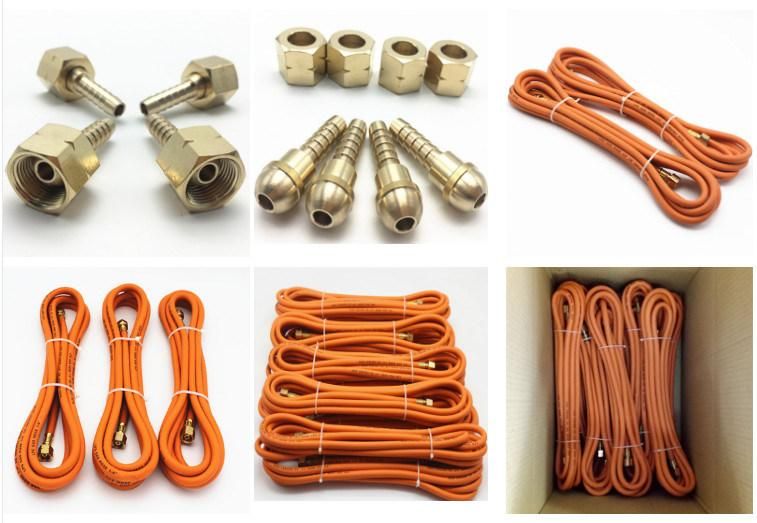

3/8" Female left-hand brass fittings.
If you need other sizes and fittings, please feel free to contact us.

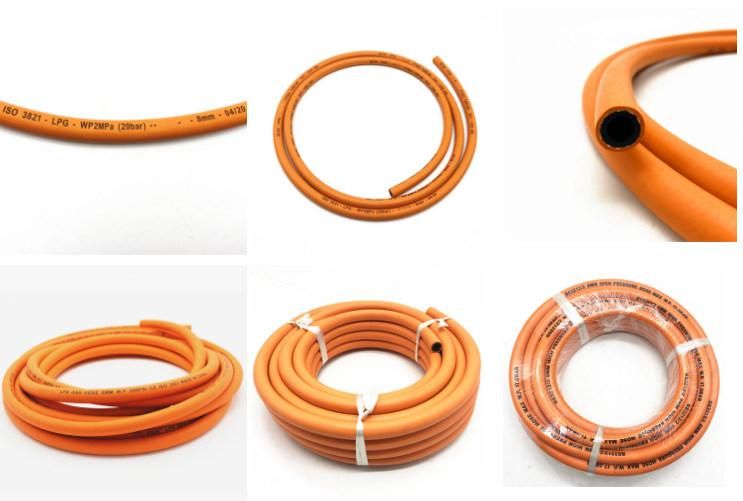

Product Photos:
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Paishun is a leading rubber hose manufacturer in east China for over 14 years, with professional and permanent technical service and support for you.

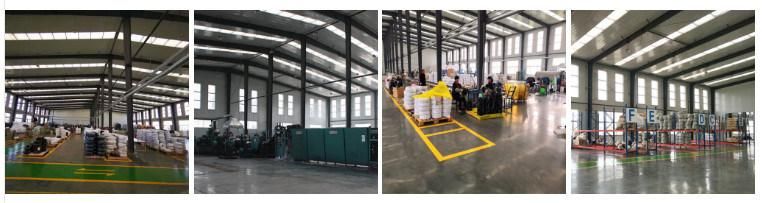

We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.Certifications
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition
FAQ
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.
Rubber Gas Hose
Paishun Rubber Gas Hose is one of our main products with 8 years manufacturing experience. We currently export to Europe, American and Australia. The cooperated Brand is WELDMAN.Specification of Gas Hose
Rubber Gas / LPG Hose (Smooth Surface)
Construction: Tube: NBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: EPDM synthetic rubber. Abrasion resistant.
Temperature: -30ºC to +90ºC
Color: Orange or Black etc
Application: Mainly used for gas stove, circulation of liquefied fuel gas or gaseous fuel, LPG
Standard length: 50m, 100m.
Standard: BS EN559
Product Parameters
Specification:
Item code
Fitting Type:
3/8" Female left-hand brass fittings.
If you need other sizes and fittings, please feel free to contact us.
Product Photos:
Packaging & ShippingPacking & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Profile:
Paishun is a leading rubber hose manufacturer in east China for over 14 years, with professional and permanent technical service and support for you.
We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.Certifications
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition
Exhibition:
FAQ1.Q:Are you a factory or trading company?
A:We are a factory for over 14 years.2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.
