Wire Spiraled Hose Multi Spiral Hydraulic Hoses

Tianjin Hengyong Hydraulic Technology Co., Ltd.
  • Material：Nitrile Rubber
  • Capability：Rubber Oil Hose
  • Color：Black
  • Hose ID：1,2 Inch
  • Hose Od：20.6mm
  • Surface：Canvas or Smooth

Base Info

  • Model NO.：R16
  • OEM：Ok
  • Custom：Ok
  • Delivery：Within 7 Days
  • Mini Order：Ok
  • Transport Package：Plastic Bags & Carton Box
  • Specification：1,4 inch to 1-1,4 inch
  • Trademark：JJR
  • Origin：Tianjin
  • HS Code：4009210000
  • Production Capacity：100000meter,Month

Description

Hydraulics hose SAE 100R16Size (Inch)Inside DiameterOutside DiameterCover ThicknessProof PressureWorking PressureBurst PressureBend RadiusMax (mm)Min (mm)Max Wire OD (mm)Max Hose OD (mm)Max (mm)Min (mm)(Mpa)(Mpa)(Mpa)(mm)1/4"7.06.212.3214.481.520.7669.034.5137.950.85/16"8.57.713.3315.751.520.7658.629.3117.257.23/8"10.19.315.8818.81.50.855.228110.363.51/2"13.512.319.122.01.50.848.32496.388.95/8"16.715.522.4825.41.50.837.91975.8101.63/4"19.818.626.329.01.50.831.01662.0120.61"26.425.034.036.61.50.827.61455.2152.41 1/4"33.031.441.944.32.01.022.41144.8209.5Wire Spiraled Hose Multi Spiral Hydraulic Hoses
Wire Spiraled Hose Multi Spiral Hydraulic Hoses
Wire Spiraled Hose Multi Spiral Hydraulic Hoses
Wire Spiraled Hose Multi Spiral Hydraulic HosesWire Spiraled Hose Multi Spiral Hydraulic HosesWire Spiraled Hose Multi Spiral Hydraulic HosesWire Spiraled Hose Multi Spiral Hydraulic Hoses

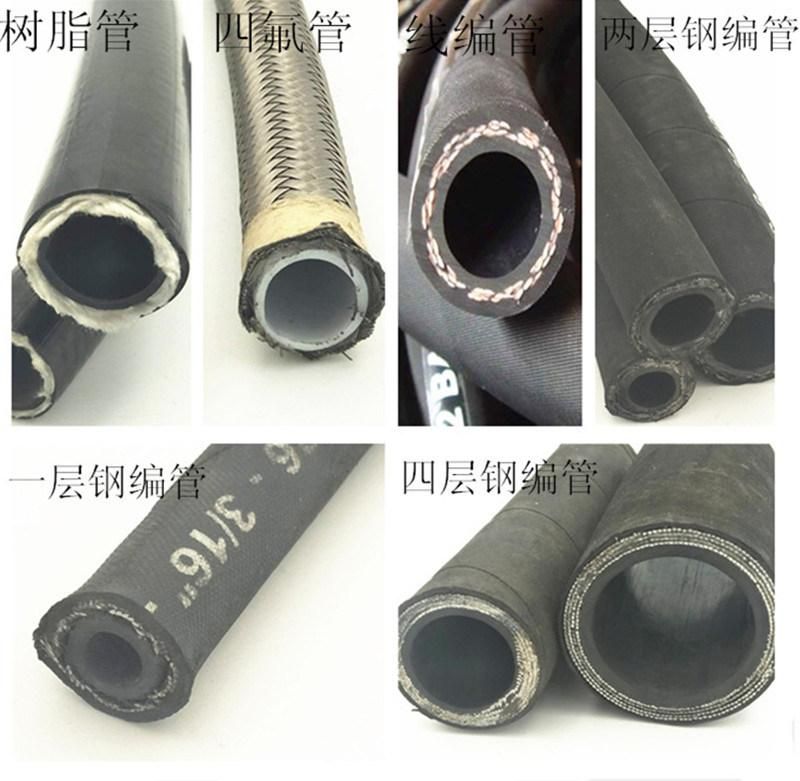

Supply other types hose:
1.Steel wire braided hydraulic hose
SAE 100 R1 AT / DIN EN853 1SN
SAE 100 R2 AT / DIN EN853 2SN
DIN EN857 1SC
DIN EN857 2SC
SAE 100 R16
SAE 100 R17
SAE 100 R5

2.Steel wire spiral hydraulic hose
DIN EN856 4SP
DIN EN856 4SH
SAE 100 R12
SAE 100 R13
SAE 100R15

3.Textile braided hydraulic hose
SAE 100 R3
SAE 100 R6

4.Rubber resin hose
SAE 100 R7 / DIN EN855 R7
SAE 100 R8 / DIN EN855 R8

5.Steam hose
Wire braided steam hose

6.PTFE Hose
SAE 100 R14
