• Model NO.：Colorful Auto Silicone Radiator Elbow Hose tube
• B.P：Max.45bar
• Reinforcement：Four or Five Fiber Layers as Request
• Cover：Smooth Surface
• Temperature：-40 ~ 250c Degree
• Smell：No Smell, Food Grade Can Be Provided
• Delivery Detail：According to The Order
• Shipment：by Sea or by Express

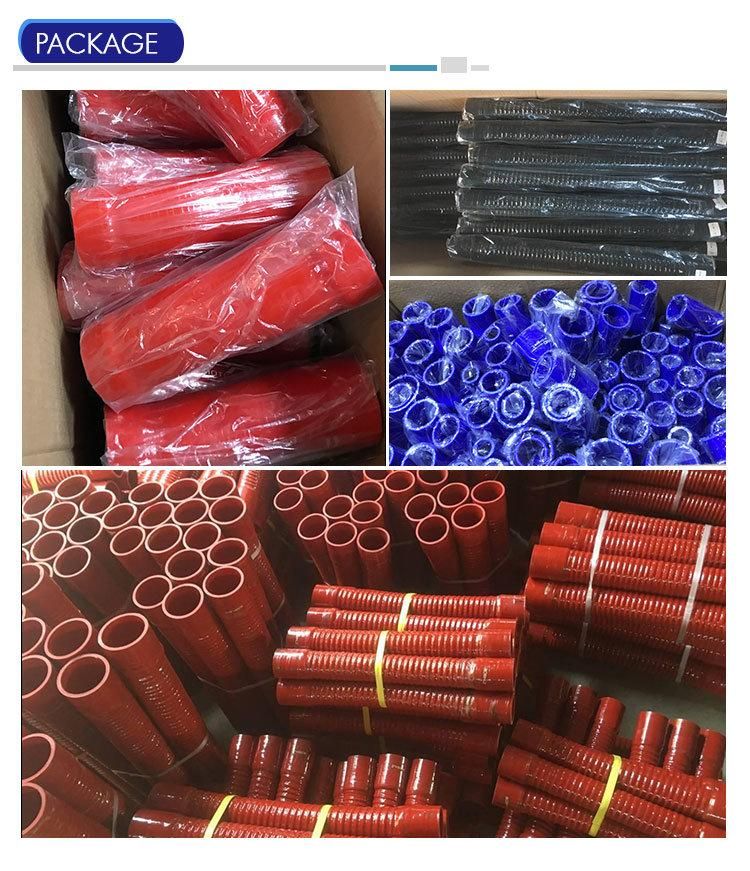

• Transport Package：Plastic Film
• Specification：ISO, SGS
• Trademark：High-Qua or OEM
• Origin：Zhejiang, China (Mainland)
• Production Capacity：100000PCS,Month

Basic Info.

Model NO. Colorful Auto Silicone Radiator Elbow Hose tube B.P Max.45bar Reinforcement Four or Five Fiber Layers as Request Cover Smooth Surface Temperature -40 ~ 250c Degree Smell No Smell, Food Grade Can Be Provided Delivery Detail According to The Order Shipment by Sea or by Express Transport Package Plastic Film Specification ISO, SGS Trademark High-Qua or OEM Origin Zhejiang, China (Mainland) Production Capacity 100000PCS/Month

Product Description

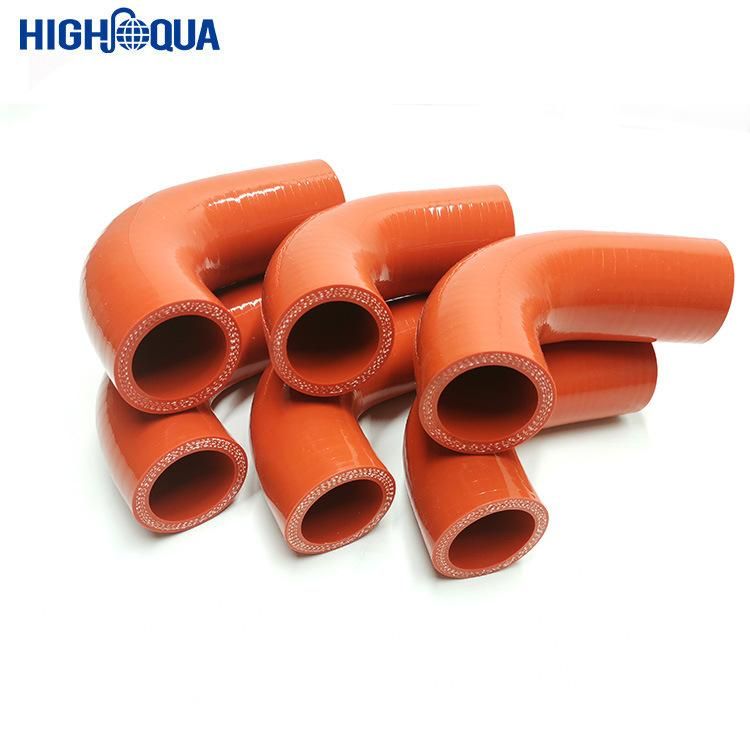

Colorful Auto Silicone Radiator Elbow Hose Tube


Silicone Hose

Product Features  of  Silicone Hose Pipe

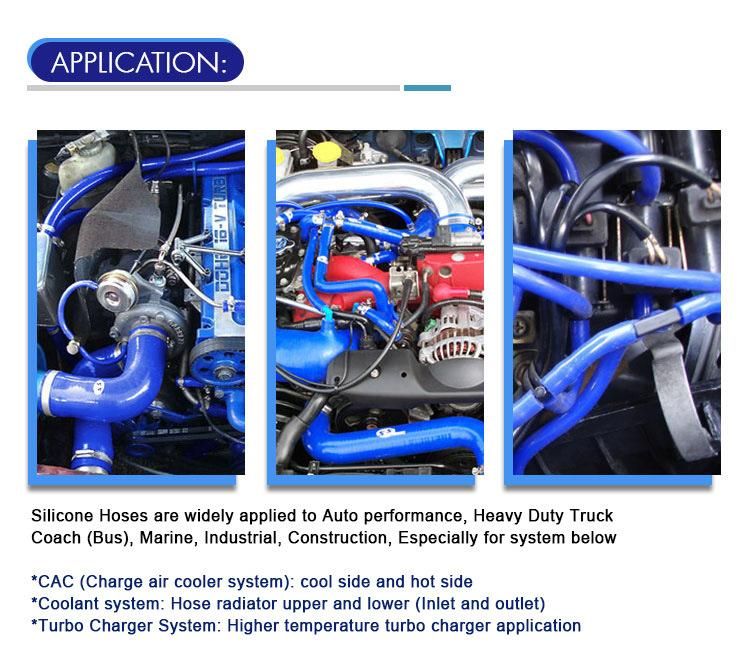

Application: Industrial silicone hose is used to transport heat resistant water, air etc near the engine and high temperature condition.
1.Heating and Cooling Systems
2. CAC Charge-Air-Cooler (Hot & Cold side)
3.Turbo Charger Systems & Custom Compressor,
4.Intercooler or Intake & Inlet Piping for Turbo/Superchargers. etc.
Color: Normal color black, red, blue, green, yellow, white, purple or other colors requested by customers.Material construction : Four or five silicone layer with three or four high tensile industrial cloth wrap reinforcement
Temperature: -50ºC-250ºC


1. Name:    silicone rubber tube

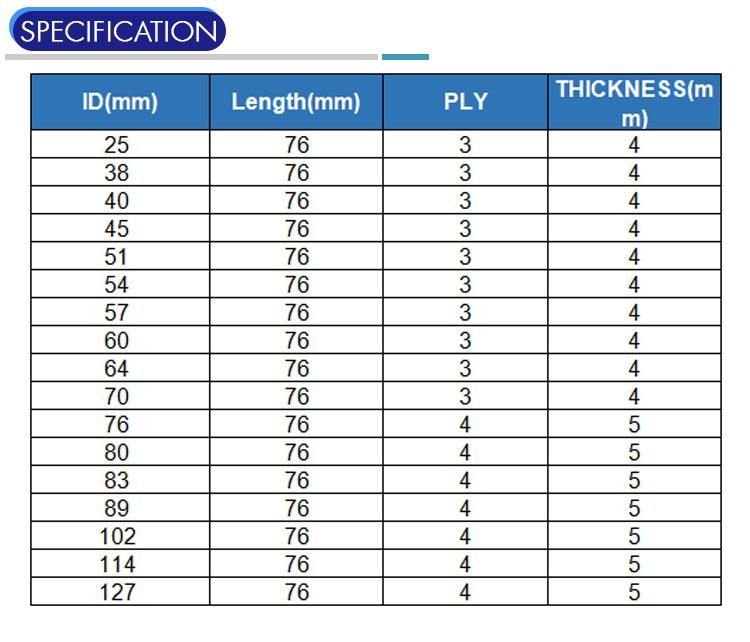

2.Specification :

1) Material:   100% high quality silicone

2) Shape:   Straigh/elbow

3) Reinforced layers:  3-4Ply  Polyester/Normex reinforced

4) Resistance temperature:  -40°C to 260°C

5) Pressure range:  0.3 - 0.9MPa

6) Wall Thickness :  2 to 6mm

7) Colors:  Red/yellow/green/orange/white/black/blue/purple etc.

8)  Advantage:   Polyester or nomex layers to enable high temp and pressure than original rubber hose does and the silicone tube can bear the high low temperature, non-toxic tasteless, insulation, anti-ozone, bear burning , oil resistance.

9) Usage: Turbine superchargers and coolants.

Details Images
