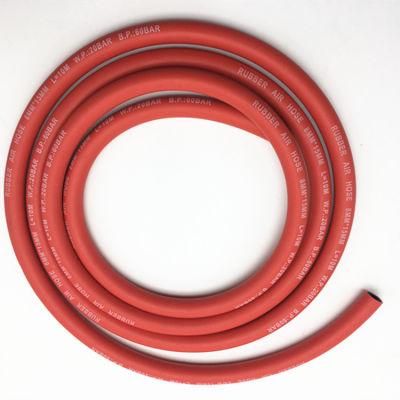

Factory Supply SBR Material 8mm Red Rubber Air Hose Pipe
Hangzhou Paishun Rubber and Plastic Co., Ltd.- Material：SBR & Nr
- Capability：Rubber Air Hose
- Color：Black, Red, Yellow, Blue, Green, Orange, etc.
- Size：5,16" Inch
- Inner Diameter：8mm
- Outer Diameter：15mm
Base Info
- Model NO.：8mm
- Certification：Ce, SGS, SUV
- Cover：Nr & SBR Synthetic Rubber
- Standard Length：50m, 100m
- Hose Surface：Smooth Surface
- Reinforcement：High Tensile Polyester Fiber Braided
- Transport Package：OPP Film or Woven Poly Strips
- Specification：5,16"
- Trademark：PASSION
- Origin：China ( Mainland )
- HS Code：40093100
- Production Capacity：300000meters,Month
Description
Overview
Product Description
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product ParametersInner Diameter Outer Diameter Working Pressure Burst Pressure Length Measurement Weight inch mm mm bar psi bar psi m cbm/roll kg/m PRA-05 3/16" 5 11.5 20 300 60 900 100 0.02 0.15 PRA-06 1/4" 6 13 20 300 60 900 100 0.025 0.17 PRA-08 5/16" 8 15 20 300 60 900 100 0.03 0.22 PRA-10 3/8" 10 17 20 300 60 900 100 0.04 0.26 PRA-13 1/2" 13 21 20 300 60 900 100 0.07 0.4 PRA-16 5/8" 16 24 20 300 60 900 50 0.06 0.45 PRA-19 3/4" 19 29 20 300 60 900 50 0.07 0.7 PRA-25 1" (1b) 25 36 12 180 36 540 50 0.09 0.85 PRA-25-2 1" (2b) 25 37 20 300 60 900 50 0.1 0.95 PRA-32 1-1/4" 32 44 10 150 30 450 50 0.16 1.4 PRA-38 1-1/2" 38 51 10 150 30 450 50 0.20 1.7 PRA-51 2" 51 65 10 150 30 450 20 0.20 2.2

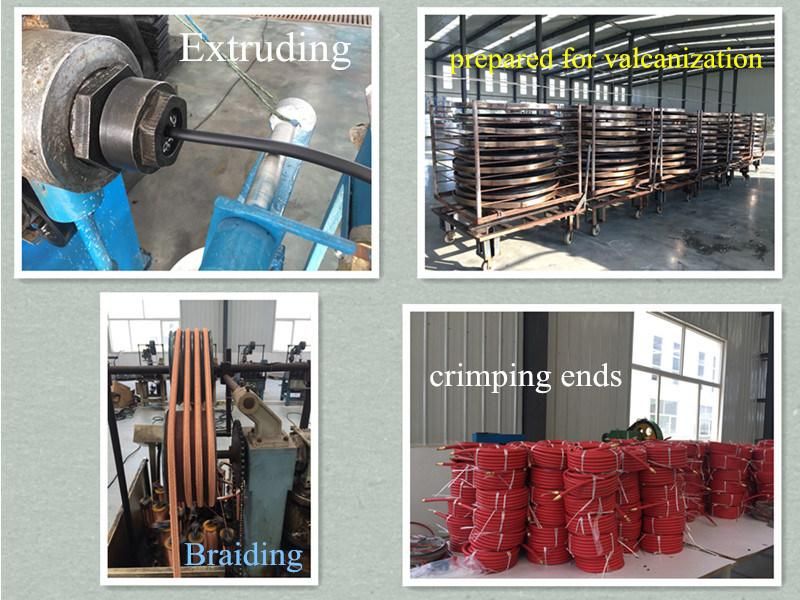

Paishun Production Procedure
( Extruding-vulcanization-braiding-Extruding outer cover-Vulcanization-Crimping-Testing-Packing)

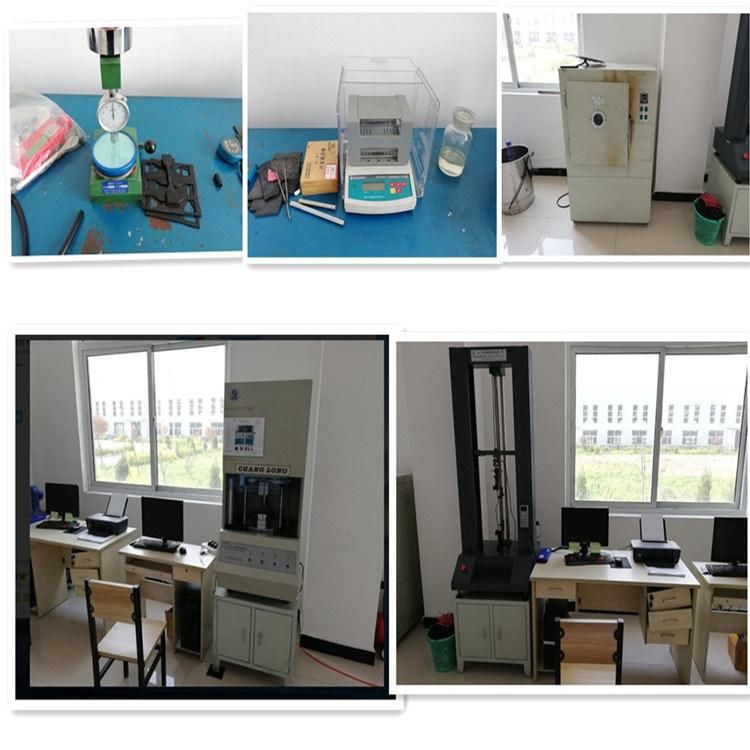

Quality Control
Paishun Team and Clients:

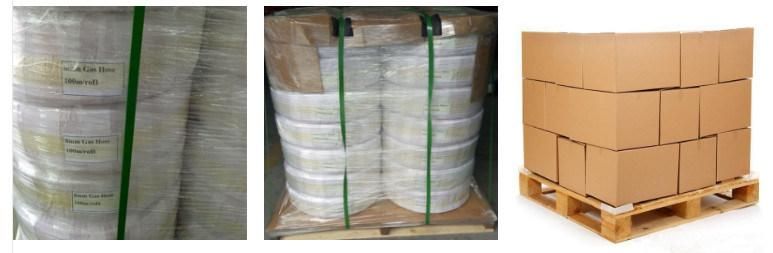

Packaging & Shipping
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
FAQ
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
How to contact us?
If you want to Know More Details. Please feel free to Contact Us!
Web: http//cnparshun.en.made-in-china.com
Rubber Air Hose (smooth surface)
Construction: Tube: NR& SBR synthetic rubber.Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30ºC - +80ºC
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Product Parameters
Item code

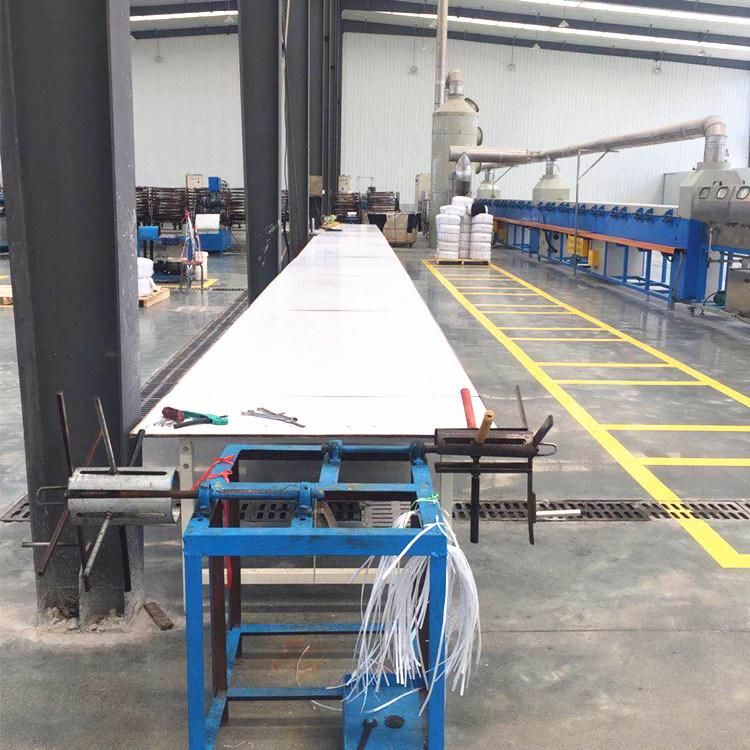

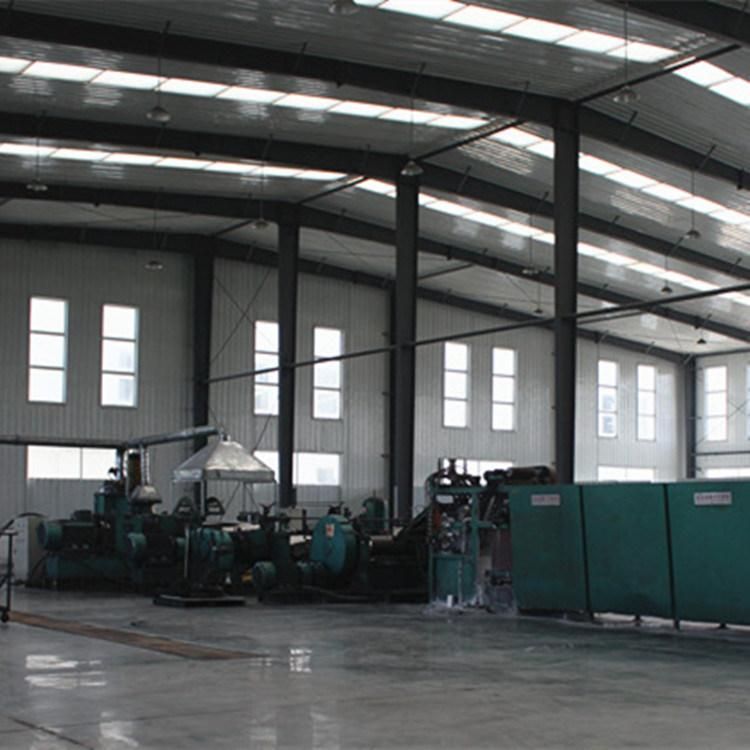

Paishun Production Line:
Paishun Production Procedure
( Extruding-vulcanization-braiding-Extruding outer cover-Vulcanization-Crimping-Testing-Packing)
Quality ControlPaishun Quality & Research:
Paishun Team and Clients:Packaging & Shipping
