Rubber Hydraulic Hose SAE 100r1at Made in China
Qingdao Hyrotech Rubber & Plastic Products Co., Ltd.- Material：Nitrile Rubber
- Capability：Hydraulic Hose
- Color：Black, Red, Blue, Grey
- Length：20m 40m 50m 100m 200m
- Cover：Smooth and Wrapped
- Size：3,16"-2"
Base Info
- Model NO.：SAE 100R1AT
- Model：Hydraulic Hose SAE 100r1at
- Working Temperature：-40c to +100c
- Transport Package：as Your Request
- Specification：CE
- Trademark：Hyroteflex
- Origin：Qingdao of Shangdong
- HS Code：40093100
- Production Capacity：5000000meters, Per Year
Description
DN Hose I.D Wire O.D Hose O.D Working Pressure Burst Pressure Minimum Bend Radius Weight Length inch mm mm mm MPa psi MPa psi mm kg/m metres 5 3/16 4.8 9.5 11.8 25.0 3630 100.0 14280 89 0.19 50/100 6 1/4 6.4 11.1 13.4 22.5 3270 90.0 12840 102 0.21 50/100 8 5/16 7.9 12.7 15.0 21.5 3120 85.0 12280 114 0.24 50/100 10 3/8 9.5 15.1 17.4 18.0 2615 72.0 10280 127 0.33 50/100 13 1/2 12.7 18.3 20.6 16.0 2320 64.0 9180 178 0.41 50/100 16 5/8 15.9 21.4 23.7 13.0 1890 52.0 7420 203 0.45 50/100 19 3/4 19.0 25.4 27.7 10.5 1530 42.0 6000 241 0.58 50/100 25 1 25.4 33.3 35.6 8.8 1280 35.0 5020 305 0.88 50 32 11/4 31.8 40.5 43.5 6.3 920 25.0 3600 419 1.23 20/40 38 11/2 38.1 46.8 50.6 5.0 730 20.0 2860 508 1.51 20/40 51 2 50.8 60.2 64.0 4.0 580 16.0 2280 635 1.97 20/40

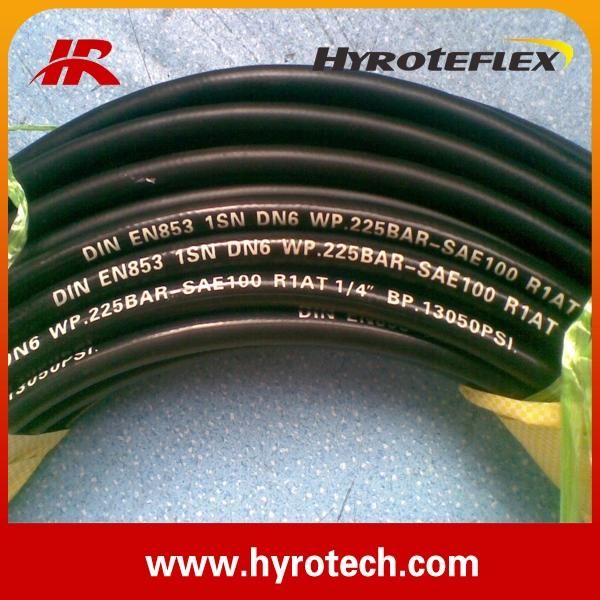

Detailed Image
Contact us
If you have any questions, looking forward to hearing your reply.

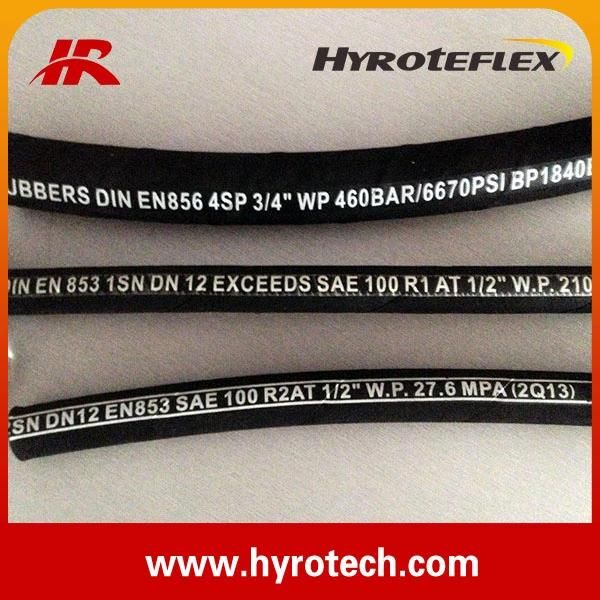

Detailed Image
