• Model NO.：YH-NBR010
• Hardness：30-90 Shore a
• Tolerance of Size：ISO3301-M2 or Your Requirement
• Tolerance of Hardness：+,-5 Shore a
• Color of NBR Oring：Black or Another Pantone Color
• Sample：Freely for You
• Customized：by Your Drawing or Sample
• Catalogue：RoHS,Reach,FDA
• Company：Manufacturer
• Transport Package：Carton Box
• Specification：47*30*27cm
• Trademark：YIHO
• Origin：China
• Production Capacity：50000,PC

Basic Info.

Model NO. YH-NBR010 Hardness 30-90 Shore a Tolerance of Size ISO3301-M2 or Your Requirement Tolerance of Hardness +/-5 Shore a Color of NBR Oring Black or Another Pantone Color Sample Freely for You Customized by Your Drawing or Sample Catalogue RoHS/Reach/FDA Company Manufacturer Transport Package Carton Box Specification 47*30*27cm Trademark YIHO Origin China Production Capacity 50000/PC

Product Description

hot rubber sealing/EPDM oring/silicone seal/NBR seal

Hot rubber sealing,it is a mechanical gasket in the shape of a torus; it is a loop of elastomer with a round cross-section, designed to be seated in a groove and compressed during assembly between two or more parts, creating a seal at the interface.

Hot rubber sealing may be used in static applications or in dynamic applications where there is relative motion between the parts and the O-ring. Dynamic examples include rotating pump shafts and hydraulic cylinder pistons.Usually this product will be used in machine design because they are inexpensive, easy to make, reliable, and have simple mounting requirements.



Quality of hot rubber sealing:

a. Ozone and chemical resistance

b. High temperature resistance

c. Excellent weather resistance

d. Anti-aging, anti-radiation, good flexibility, good elasticity

e. Excellent resistance of acids, aliphatic hydrocarbons, aromatic hydrocarbons and animal and vegetable oil.



More information of  hot rubber sealing

1.Competive price for high quality.

2.Available material : material for Silicone,NBR,VITON(FKM),Neoprene,HNBR,Natural rubber, ACM EPDM,etc

3.All manufacturing processes confirm to the ISO9001:2008 and TS16949,SGS,ROHS,REACH,FDA

4.Characteristics: high and low temperature resistant, acid-alkali resistant, ozone resistant, UV resistant,aging resistant, weather resistant, good insulation property, anti-toxic, good air-permeable, etc.

5.Hardness: 25~95 shore A or IRHD as your request, tolerance is ± 5 shore A, and can be ±3 shore A for special products.

Name	oven sealing rubber
Material	silicone,viton,EPDM,NBR,HNBR,SBR etc
Certification	ISO9001:2008 Passd ROHS,FDA, CTI,etc   TS16949
Size	Customize
Color	Black and other pantone color
3D,CAD drawing	Accept
Temperature	-40°C to+300°C
Hardness	30-90 shore A
Logo	OEM & ODM orders are welcome
Package	Standard package or according to your request
QC/ QA	Third Parties
Feature	1.Ozone and Chemical resistance    2. Anti-aging,good flexibility, good elasticity 3. Excellent oil resistance
Application	Electronic field, industrial machine & equipment ,house-hold appliance, tele-communication,automobile,medical equipment industry etc.
Delivery	7 days-10days
Note	1.Models and Logos can be Customized according to your Requirement 2.Designs and Specification are Accepted  3.Samples are welcome for you,if you afford the freight cost.

Features of different material  for oven sealing rubber:

	Viton O ring	Silicone O ring	NBR O ring	HNBR O ring	EPDM O ring	NR O ring	Peoprene O ring
Abbreviation	FKM	silicone	NBR	HNBR	EPDM	NR	Neoprene
Durometer(shoreA)	60-90	30-90	20-95	50-90	30-90	20-90	20-95
Tensile(P.S.I)	500-2000	200-1500	200-3000	2600	500-2500	500-3500	500-3000
Elongation(Max.%)	300	700	600	530	600	700	600
Compression set	good	Good	Good	Excellent	Good	Excellent	Good
Resilience-Rebound	Fair	Good	Good	Excellent	Good	Excellent	Excellent
Abrasion Resistance	Good	Fair to poor	Excellent	Excellent	Good	Excellent	Excellent
Tear Resistance	Good	poor	Good	Excellent	Fair	Excellent	Good
Solvent Resistant	Excellent	poor	Good to excellent	Good	Poor	Poor	Fair
Oil Resistant	Excellent	Fair to poor	Good to excellent	Excellent	Poor	Poor	Fair

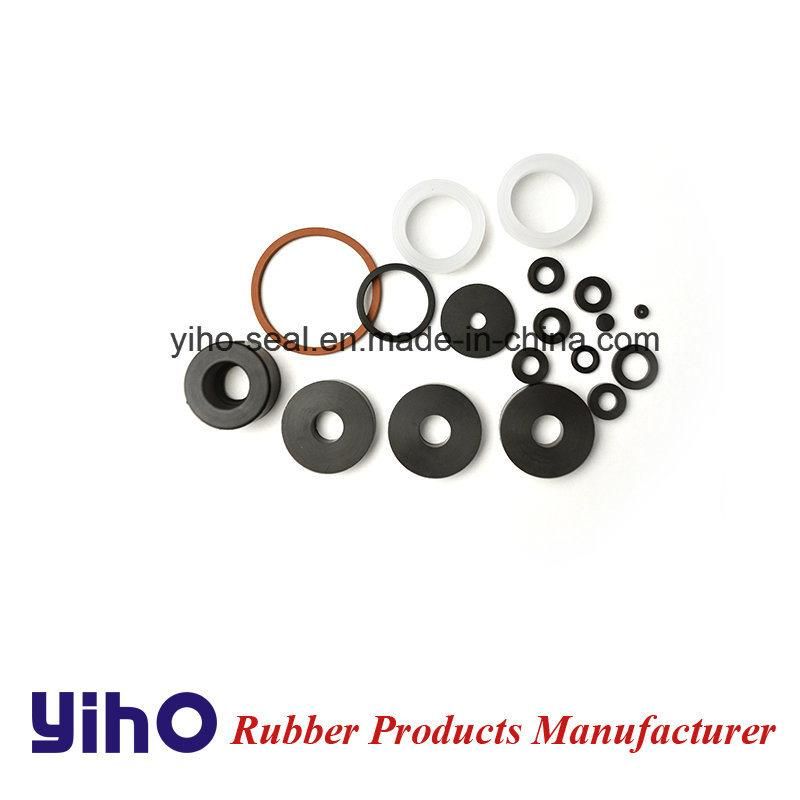

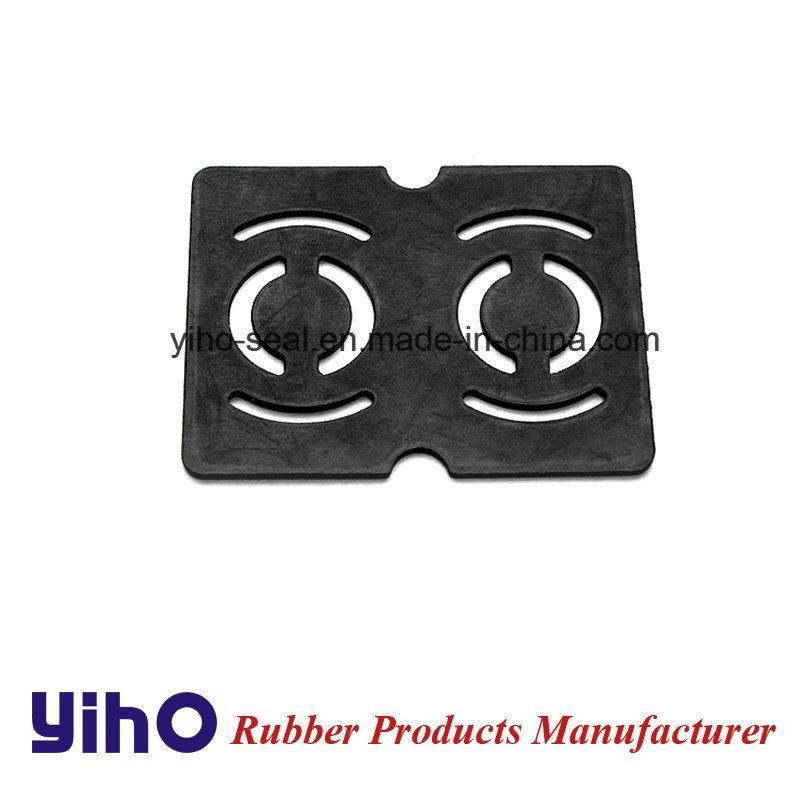

Some rubber products in our factory:
