Rubber & Rubber Products

Home > Product > Rubber Seal

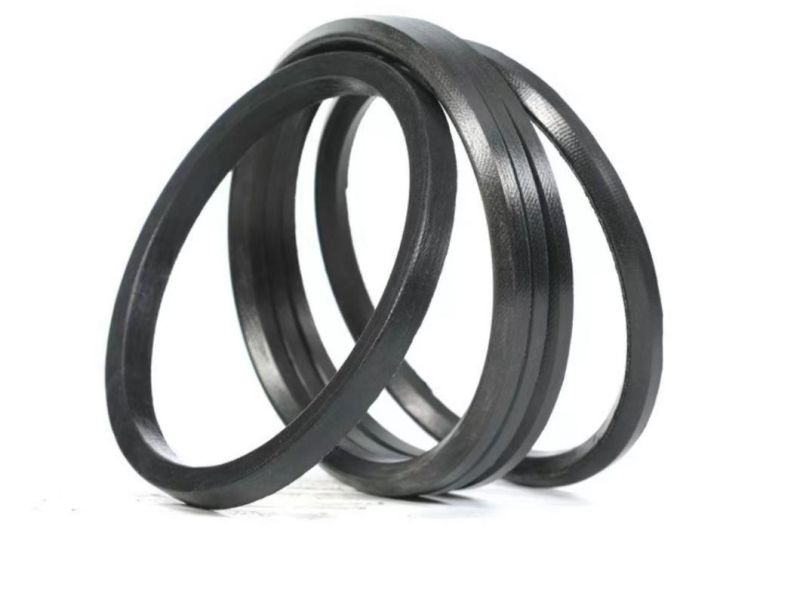

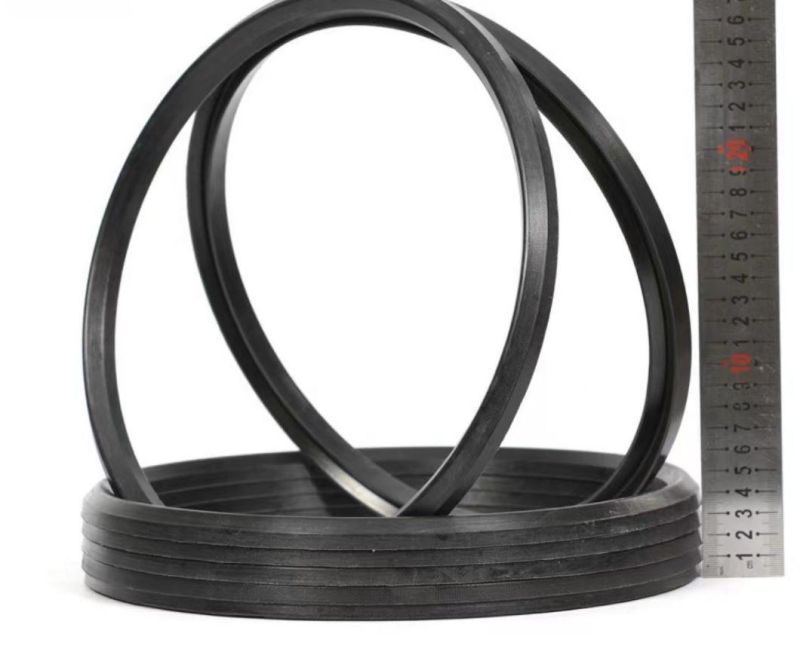

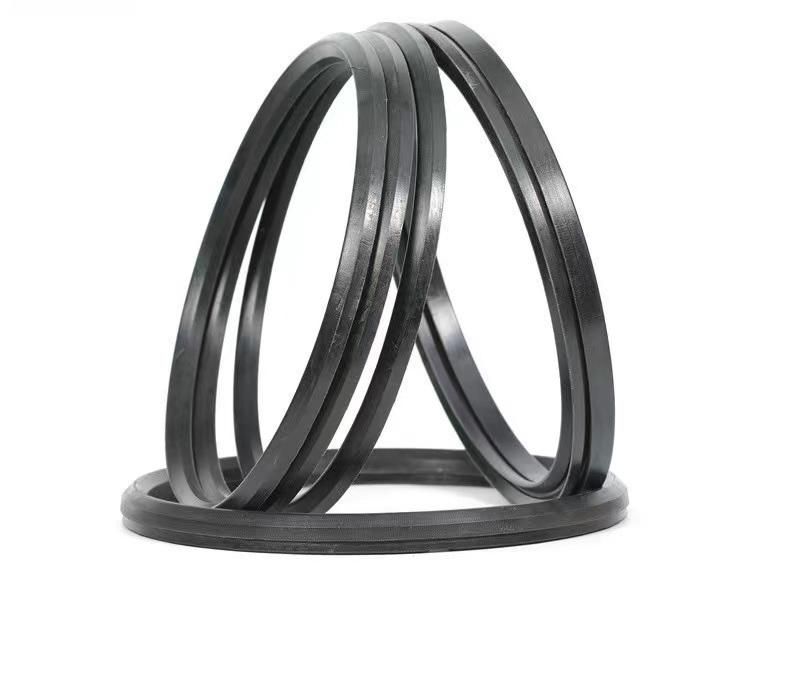

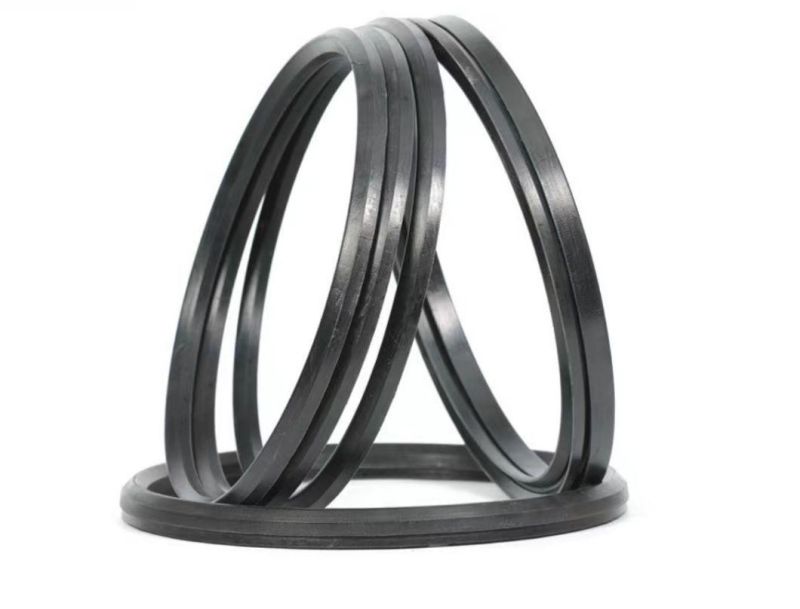

Zr Cloth Clamp Oil Seal, Three Combination Piston Seal, Rubber Cloth Hydraulic Cylinder Seal Ring

Ren County Fumeida Machine Parts Co., Ltd.
  • Material：HNBR
  • Application：Machinery, Industrial Component, Electronic Product, Vehicle, Household Appliance
  • Effect：Hole with Seal
  • Cross-Section Shape：O-Rings
  • Transport Package：The Cartons
  • Specification：ZR

Base Info

  • Model NO.：ZR
  • Trademark：FMD
  • Origin：China
  • Production Capacity：100000PCS,Year

Description

The product nameFabric oil sealspecificationsZRstandardstandardTransport packagingThe cartonsProduct materialButadiene rubber, cotton fabricplace of originChina
Zr Cloth Clamp Oil Seal, Three Combination Piston Seal, Rubber Cloth Hydraulic Cylinder Seal RingZr Cloth Clamp Oil Seal, Three Combination Piston Seal, Rubber Cloth Hydraulic Cylinder Seal RingZr Cloth Clamp Oil Seal, Three Combination Piston Seal, Rubber Cloth Hydraulic Cylinder Seal RingZr Cloth Clamp Oil Seal, Three Combination Piston Seal, Rubber Cloth Hydraulic Cylinder Seal Ring





V series sealing ring is fabric structure, molded by rubber fabric. It is usually composed of three parts: supporting ring, sealing ring and pressure ring. According to the pressure, several sealing rings can be used together (usually 7). V-ring can be used in high pressure, large diameter, high speed, long stroke and other harsh conditions. Can be used as shaft, also can be used as hole sealing.

Main features:

1, good sealing performance, easy installation;

2, impact pressure resistance;

3, allow a large extrusion clearance;

4. The number of V-shaped rings can be selected according to the working condition.

Working conditions:

Working pressure: ≤40MPa; Operating temperature: -25°C-+120ºC

Working medium: hydraulic oil, emulsion; Reciprocating speed: ≤0.5m/s
