• Model NO.：5,16"~7,8"
• Barrier：PA,Nylon
• Inner Tube：EPDM
• Reinforcement：Pet or Single Braid Polyester.
• Cover：EPDM Synthetic Rubber
• Temperature：-30c~125c
• Length：100m
• W.P：15bar ~35bar
• Surface：Cloth-Wrapped Surface or Smooth Surface
• Standard：Saej2064 Type C or Type E
• Transport Package：Well Packed by Woven Poly Stripes.
• Specification：5,16", 1,2", 5,8"
• Trademark：PASSION
• Origin：Zhejiang China
• HS Code：40093100
• Production Capacity：400000 Meters , Month

Overview Product Description

Construction: Barrier: PA

Product Parameters

Specification:

Inner DiameterOuter DiameterWorking PressureBurst PressureLengthWeightinchmmmmbarpsibarpsimkg/m 5/168.2±0.415.2±0.53550028040601000.1513/3210.2±0.417.2±0.53550022031391000.17 7/1611.5±0.418.4±0.53550023033351000.20 1/213.2±0.420.8±0.53550020029001000.23 5/815.5±0.422.8±0.52029018026101000.26 3/419.0±0.427.5±0.51521016023201000.37 7/822.0±0.433.0±0.51521012017401000.67Detailed Photos

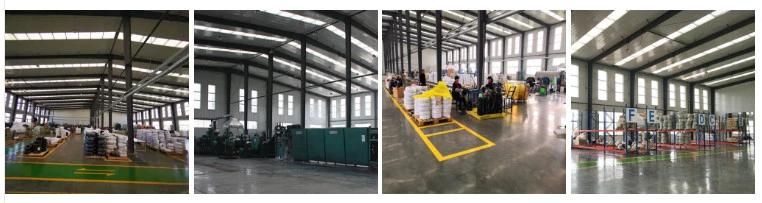

We are a professional manufacturer with 3 production lines.

Hangzhou Paishun Rubber and Plastic Co.,Ltd is a company that specialized in manufacturing various Rubber Hoses, Rubber Products,Rubber Fittings and Hydraulic Hose Assembly.

* We produce various Steel Spiral Hoses, High Pressure Oil Hoses, Water Hoses, general used Oil Hoses, Air-Conditioner assembled Hoses, Joint Hoses, Twist Hoses, Radiator Hoses, Special Shaped Rubber Hoses, Special Ebow Rubber Tubes, Silicone Hoses, Fluorine Hoses and EPDM Hose. Also we supply the production of OEM and the model production of special shaped Rubber Hoses.

* Most of our products get TS16949 certification and ROHS certification.

PASSION HOSE!
PASSION FOR YOU!

PASSION for Production:  It's the essential of our enterprise. We invest continuous resources on our production equipments, as well as the testing machines. Our experienced engineers will assure the quality control.

PASSION for Sales:  We have experience selling to foreign markets. We offer our favorable factory prices directly to help you win your markets. We also have a professional after-sales team to help you solve any problem you may have.


PASSION for Service:  PASSION people are one team of passion and service esprit. You will find it's very easy to communicate with us. 24 hours x 7 days waiting for your contact!

Hydraulic Rubber Hose:wire braided reinforced hosesSAE 100 R1AT/1SN, SAE 100 R2AT/2SN, SAE100R5, SAE 100R16 textile braided reinforced hosesSAE 100R3, SAE 100R4, SAE 100R6thermoplastic hose SAE 100R7, SAE 100R8wire spiralled
reinforced hoses
SAE 100R9, SAE100R10, EN856 4SP, EN856 4SH, SAE 100R12, SAE 100R13, SAE 100R15
 Fiber Braid Rubber Hose:
 Oil resistant Hose Oxygen Acetylene Hose Acid Aikali Resistant Hose Special Pure Rubber HoseHeat Resistant Hose Wear Resistant HoseAir Hose/water hoseGas LPG HoseTwin Welding HoseFreon Charging HoseAutomotive air condition hose
Packing & Delivery:



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Company Profile



Company Profie:



Paishun is a leading rubber hose and fittings manufacturer in east China for over 13 years, with professional and permanent technical service and support for you.
We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, crimping machine and high speed braiding process, etc.Certifications



Certifications:




Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.Exhibition



Exhibition:


 FAQ



Q1. Do you produce smooth or cloth wrapped cover?
A. We can produce both cover, according to your request.

Q2. Can you produce the products with our logo?
A. Yes, OEM services is available.

Q3. Are you a trade company or a factory?
A. We are a factory, welcome to visit our factory.

Q4. How long does my order take to be delivered?
A. Depends on the quantity of your order.(Usually 30 working days for a 20' container)
