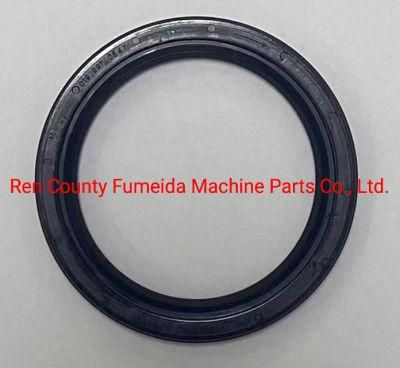

V Type Clip Cloth Combined Seal Ring, V Type Clip Cloth Combined Oil Seal Ring, 125*165 Clip Cloth Combined Seal

Ren County Fumeida Machine Parts Co., Ltd.
  • Application：Machinery, Industrial Component, Electronic Product, Vehicle, Household Appliance
  • Effect：Hole with Seal

Base Info

  • Model NO.：125*165
  • Cross-Section Shape：V-Rings
  • Transport Package：The Cartons
  • Specification：125*165
  • Trademark：FMD
  • Origin：China
  • Production Capacity：100000PCS,Year
  • Package size per unit product：125.00cm * 165.00cm * 100.00cm
  • Gross weight per unit product：1.000kg

Description

The product nameFabric oil sealspecifications125*165standardstandardTransport packagingThe cartonsProduct materialButadiene rubber, cotton fabricplace of originChina
V Type Clip Cloth Combined Seal Ring, V Type Clip Cloth Combined Oil Seal Ring, 125*165 Clip Cloth Combined SealV Type Clip Cloth Combined Seal Ring, V Type Clip Cloth Combined Oil Seal Ring, 125*165 Clip Cloth Combined SealV Type Clip Cloth Combined Seal Ring, V Type Clip Cloth Combined Oil Seal Ring, 125*165 Clip Cloth Combined SealV Type Clip Cloth Combined Seal Ring, V Type Clip Cloth Combined Oil Seal Ring, 125*165 Clip Cloth Combined Seal

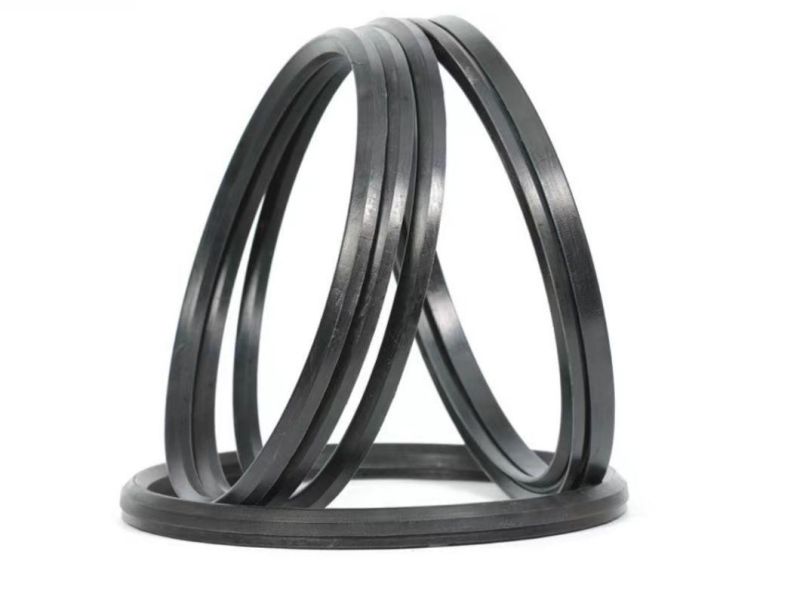

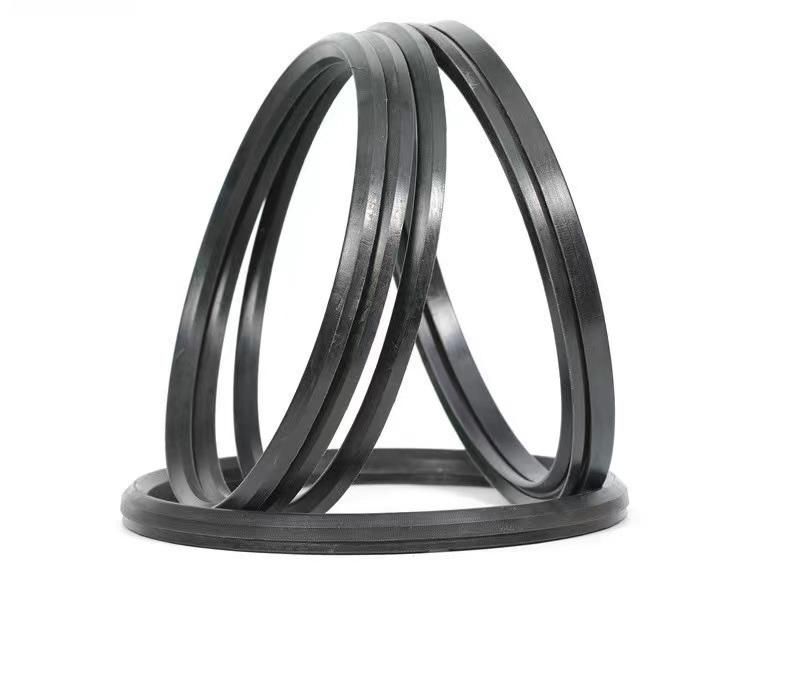

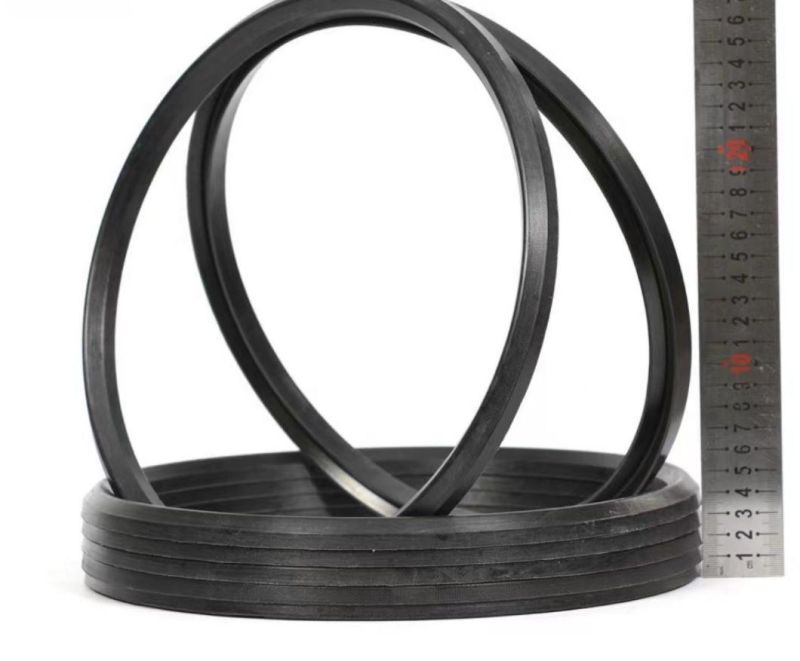

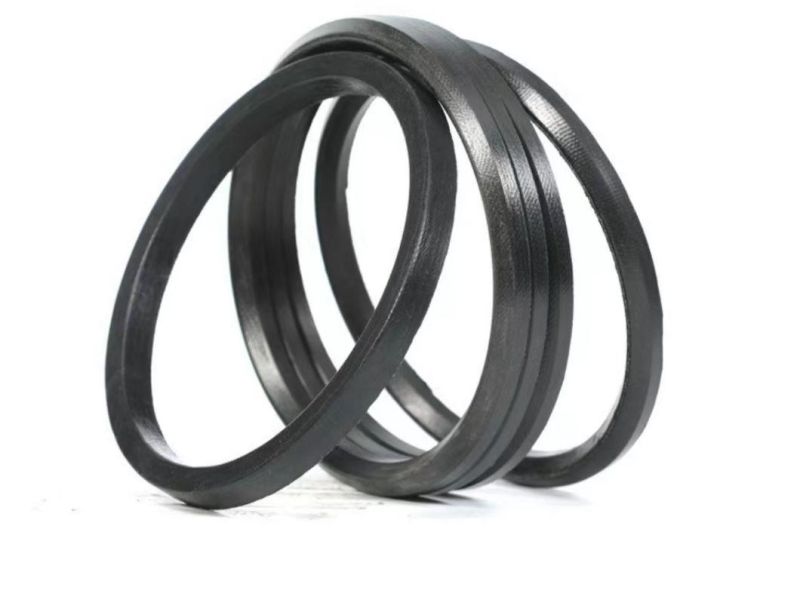

V series sealing ring is fabric structure, molded by rubber fabric. It is usually composed of three parts: supporting ring, sealing ring and pressure ring. According to the pressure, several sealing rings can be used together (usually 7). V-ring can be used in high pressure, large diameter, high speed, long stroke and other harsh conditions. Can be used as shaft, also can be used as hole sealing.

Main features:

1, good sealing performance, easy installation;

2, impact pressure resistance;

3, allow a large extrusion clearance;

4. The number of V-shaped rings can be selected according to the working condition.

Working conditions:

Working pressure: ≤40MPa; Operating temperature: -25°C-+120ºC

Working medium: hydraulic oil, emulsion; Reciprocating speed: ≤0.5m/s
